Day 2. Python Intermediate. ๐๏ธ Fitness & Diet Tracker
In Day 1 we learnt the basic python functions that let process repetitive tasks and choices. Today we will a bit more advance and powerfull modes of managing information learning how to manipulate other files, working with objects and clashes and plotting data.
Table of contents
- ๐งญ How is it explained? โ
- ๐ฆ Prerequisites, module installation and environment.โ
- ๐ Step 1: Prepare Your Data. โ
- ๐ Step 2: Create fitness_tracker.py. Classes and Object-Oriented Programmingโ
- ๐ Step 3: Read and Clean CSV Filesโ
- ๐ Step 4: Summarize and Merge Dataโ

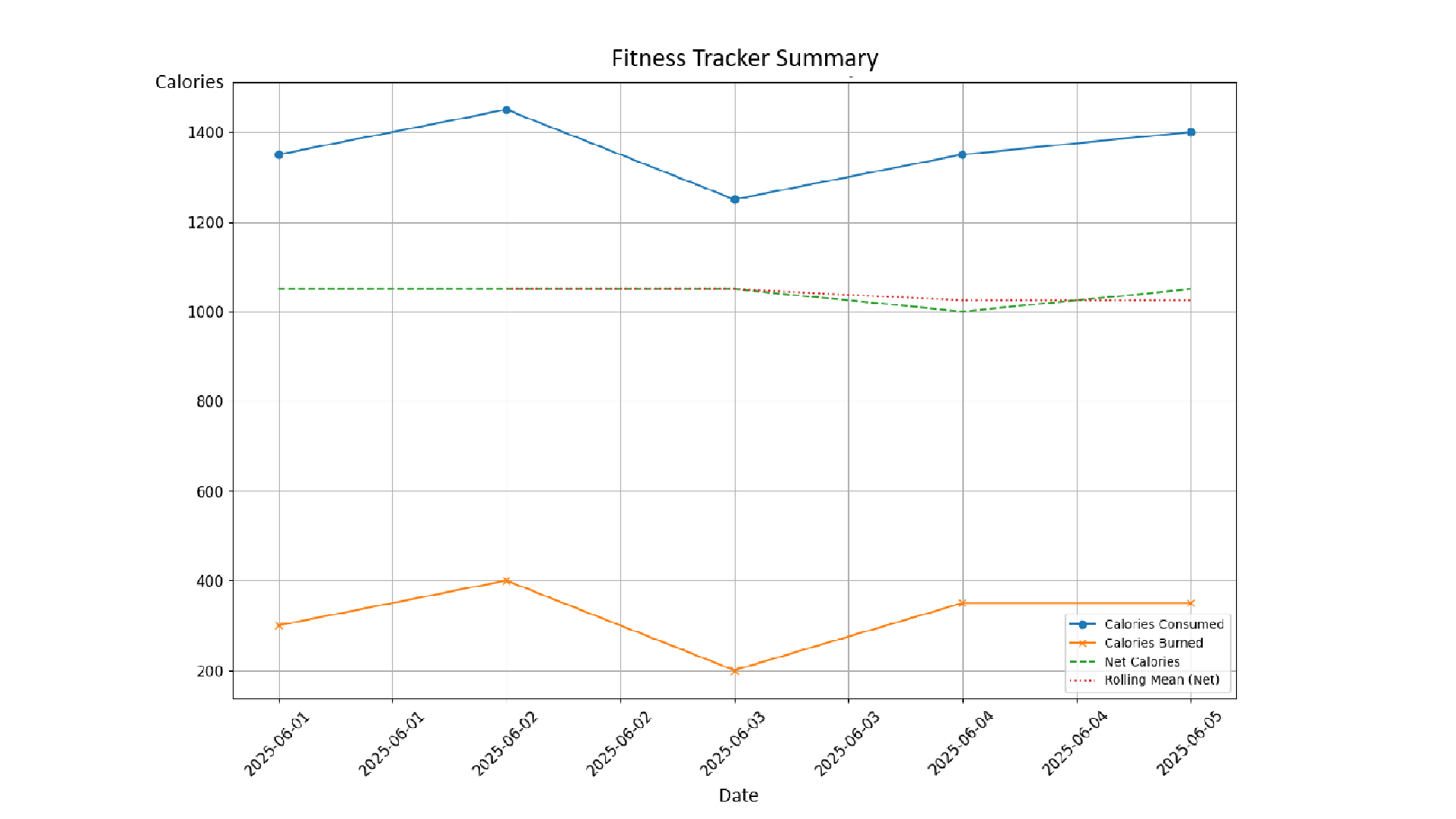

- ๐ Step 5: Visualize with matplotlibโ
- โถ๏ธ Step 6: Main Programโ
- ๐งช Practice Challengesโ
๐งญ How is it explained? โ
This time we are going to build a fitness and diet tracker that will calculate the net calories everyday and plot the history in a chart. This command-line tool:
- Logs workouts and meals
- Reads and cleans CSV data
- Performs data analysis
- Visualizes trends using charts
- Uses OOP for structured code
๐ฆ Prerequisites, module installation and environment.โ
You will require:
- Python 3.x
- pandas and matplotlib
which you can install by running the command below in bash:
pip install pandas matplotlib
๐ Step 1: Prepare Your Data. โ
๐ Understanding File Structure ๐ and Paths in Pythonโ
A file structure (also known as a directory structure) refers to how files and folders are organized on your computer. Itโs like a tree:
- At the top is the root (e.g., C:\ in Windows or / in Unix/Linux).
- Inside it are folders/directories (e.g., Documents, Desktop, etc.)
- Folders can contain files (like .txt, .csv, .py) or other folders (subdirectories).
๐ We need file structures to organize data, locate files, and build scalable applications.โ
A file path is the address to a file or folder in the computer. There are two types:
- Absolute Path that Points to the exact location from the root and always starts from the drive or root directory.
"C:/Users/structuralwizard/Desktop/my_file.txt" # Windows "/home/structuralwizard/documents/my_file.txt" # Linux/macOS
- Relative Path that points to a location relative to the current working directory.
"data/my_file.txt" # Means inside the folder 'data' "./my_file.txt" # Current directory "../my_file.txt" # One folder up
Forward slash is used in Unix/macOS/Linux, and also in Python on all platforms. \
Backslash is used in Windows.
Best practice: Use forward slashes
/
in Python or use theos.path
module for compatibility.
๐Python and the OS Moduleโ
The os module helps interact with the file system reducing syntaxis errors are performing certain basic functions.
import os
print(os.getcwd()) # Get current directory
print(os.listdir(".")) # List files and folders in a directory
file_path = os.path.join("data", "file.csv") # Join paths safely
print(file_path)
print(os.path.exists(file_path))# Check if path exists
In the fitness tracker os is used to create the path to the input files:
DATA_DIR = os.path.join(os.path.dirname(__file__), 'data')
WORKOUTS_FILE = os.path.join(DATA_DIR, 'workouts.csv')
MEALS_FILE = os.path.join(DATA_DIR, 'meals.csv')
๐ File structure and csv filesโ
For this example we will store the records of our workouts and meals in the csv files in the subfolder data.
fitness_tracker/
โโโ data/
โ โโโ workouts.csv
โ โโโ meals.csv
โโโ fitness_tracker.py
CSV stands for Comma-Separated Values. Itโs a plain text file used to store tabular data (like a spreadsheet or database) in a simple format.
Each row is a line in the file, and each column value is separated by a comma (,).
๐น Key Formatting Rules
Element | Description |
---|---|
Comma (,) | Default separator between values |
New Line | Separates rows |
First row | Often used as header (column names) |
Quotes (โโ) | Used around fields that contain commas or line breaks |
.csv | File extension for CSV files |
For this example the csv files are:
`data/workouts.csv`
date,type,duration_minutes,calories_burned
2025-06-01,Running,30,300
2025-06-02,Cycling,45,400
2025-06-03,Yoga,60,200
2025-06-04,Swimming,30,350
2025-06-05,Running,40,350
`data/meals.csv`
date,meal_type,food,calories
2025-06-01,Breakfast,Oatmeal,250
2025-06-01,Lunch,Chicken Salad,500
2025-06-01,Dinner,Pasta,600
2025-06-02,Breakfast,Eggs,300
2025-06-02,Lunch,Sandwich,450
2025-06-02,Dinner,Steak,700
2025-06-03,Breakfast,Smoothie,200
2025-06-03,Lunch,Rice and Beans,550
2025-06-03,Dinner,Grilled Fish,500
2025-06-04,Breakfast,Yogurt with Granola,320
2025-06-04,Lunch,Vegetable Soup,380
2025-06-04,Dinner,Chicken Curry,650
2025-06-05,Breakfast,Avocado Toast,400
2025-06-05,Lunch,Caesar Salad,420
2025-06-05,Dinner,Salmon with Vegetables,580
๐ Step 2: Create fitness_tracker.py. Classes and Object-Oriented Programmingโ
Letโs dive into Object-Oriented Programming (OOP) with a simple analogy!
๐ What is Object-Oriented Programming (OOP)?โ
Imagine you want to build a fleet of different types of vehicles: cars, motorcycles, and trucks. Instead of listing every single detail for every single vehicle you build (e.g., โThis car has 4 wheels, a red color, can accelerate, can brake. This other car has 4 wheels, a blue color, can accelerate, can brakeโฆโ), OOP helps you organize your design.
OOP is a way of organizing your code around โobjectsโ rather than just functions and data. Think of it like a blueprint system for creating things.
๐ What are Classes?โ
Letโs continue with the โVehicle Factoryโ analogy:
Classes are like Blueprints: Before you build any vehicle, you need a design. Youโd have a Car Blueprint, a Motorcycle Blueprint, and a Truck Blueprint. These blueprints define what characteristics (like number of wheels, color) and behaviors (like accelerating, braking) all cars, motorcycles, or trucks will have. Objects are like the Actual Vehicles: Once you have a blueprint, you can build actual vehicles from it. So, a specific red car you just built, a blue motorcycle, or a green truck are all objects. Each one is a unique instance created from its respective blueprint.
๐ Why is OOP Useful and When?โ
OOP is useful for:
- Organization and Modularity: It helps you break down complex problems into smaller, manageable pieces (objects). This makes your code easier to understand, maintain, and debug. Instead of one giant instruction manual for everything, you have separate blueprints for cars, motorcycles, etc.
- Reusability: You can reuse your blueprints (classes) to create many similar objects. You donโt need to redraw the car blueprint every time you want to build a new car. You just use the existing one.
- Flexibility and Maintainability: If you need to change how all cars accelerate, you just modify the โCar Blueprint.โ All cars built from that blueprint will then have the updated acceleration behavior. If you decide all cars should now have self-driving capabilities, you update the Car Blueprint, and all new cars you build from it will have that feature.
- Handling Complexity: As your programs grow, OOP helps manage the complexity by encapsulating related data and behavior together.
๐ When is it useful?โ
OOP shines when youโre dealing with:
- Complex systems: Games, simulations, large business applications.
- Programs with many similar โthingsโ: Think of a user management system (many โuserโ objects), an e-commerce site (many โproductโ objects), or a graphical user interface (many โbutton,โ โtext field,โ โwindowโ objects).
- When you want to collaborate on code: Different developers can work on different parts of the system (different classes) more easily.
๐ What are Methods, and Attributes?โ
Letโs go back to our vehicle analogy:
- Objects: As explained, these are the actual โthingsโ created from a blueprint (class). For example, my_red_car, johns_motorcycle.
- Attributes (Properties/Data): These are the characteristics or data associated with an object. They are like the details on the blueprint that describe what the vehicle is.For a Car object, attributes might be color (e.g., โredโ), number_of_wheels (e.g., 4), brand (e.g., โToyotaโ).
- Methods (Behaviors/Functions): These are the actions an object can perform. They are like the instructions on the blueprint that describe what the vehicle can do. For a Car object, methods might be accelerate(), brake(), turn_on_headlights().
How do you create an object out of a class in Python?
First, you define a class (our blueprint):
class Car:
# This is the blueprint for a Car
def __init__(self, color, brand, num_wheels=4):
# This is a special method called the "constructor".
# It's like the initial assembly line for a new car.
# 'self' refers to the specific car object being created.
self.color = color # Set the color attribute for this car
self.brand = brand # Set the brand attribute for this car
self.num_wheels = num_wheels # Set the number of wheels (default to 4)
def accelerate(self):
# This is a method (behavior) for a Car object
print(f"The {self.color} {self.brand} car is accelerating!")
def brake(self):
# Another method
print(f"The {self.color} {self.brand} car is braking.")
Now, to create an object (a specific car) from this Car class:
# Creating an object (a specific car) from the Car class
my_red_car = Car("red", "Toyota")
johns_blue_car = Car("blue", "Honda")
my_red_car.accelerate()
my_red_car.brake()
which will return
$ python car_factory.py
The red Toyota car is accelerating!
The red Toyota car is braking.
To access or set attributes, you use the dot notation (.) to access or set attributes:
# Accessing attributes
print(f"My car's color: {my_red_car.color}")
print(f"John's car's brand: {johns_blue_car.brand}")
# Setting (modifying) an attribute
my_red_car.color = "yellow"
print(f"My car's new color: {my_red_car.color}")
๐ What is Class Inheritance?โ
Inheritance is a powerful OOP concept that allows you to create new classes based on existing ones. Think of it as creating more specialized blueprints from general ones.
You have a general โVehicle Blueprint.โ From this, you can create a โCar Blueprint,โ a โMotorcycle Blueprint,โ and a โTruck Blueprint.โ A Car is a Vehicle, a Motorcycle is a Vehicle. The Car blueprint automatically inherits all the general characteristics and behaviors of a Vehicle (like having wheels, being able to move) and then adds its own specific ones (like having doors, specific seating).
Inheritance promotes code reuse and helps model real-world relationships.
In Python:
class Vehicle: # General blueprint
def __init__(self, num_wheels, top_speed):
self.num_wheels = num_wheels
self.top_speed = top_speed
def move(self):
print("Vehicle is moving.")
class Car(Vehicle): # Car inherits from Vehicle
def __init__(self, color, brand):
super().__init__(4, 200) # Call the parent (Vehicle) constructor
self.color = color
self.brand = brand
def accelerate(self): # Car has its own specific method
print(f"The {self.color} {self.brand} car is accelerating!")
class Motorcycle(Vehicle): # Motorcycle also inherits from Vehicle
def __init__(self, engine_size):
super().__init__(2, 180) # Call the parent (Vehicle) constructor
self.engine_size = engine_size
def wheelie(self):
print(f"The motorcycle is doing a wheelie!")
my_car = Car("green", "BMW")
my_car.move() # Car can use the Vehicle's move method
my_car.accelerate()
my_motorcycle = Motorcycle("1000cc")
my_motorcycle.move()
my_motorcycle.wheelie()
๐ Creating Meals, Workouts and Date classesโ
In our fitness tracker, we will be using three classes, one for the dates, another for the workouts and another for the meals. Each of the columns in workouts and meals will be a different attribute.
class LogEntry:
def __init__(self, date):
self.date = date
class Workout(LogEntry): # Workout inherits from LogEntry
def __init__(self, date, workout_type, duration, calories):
super().__init__(date) # Call the parent (Logentry)
self.workout_type = workout_type
self.duration = duration
self.calories = calories
class Meal(LogEntry): # Meal inherits from LogEntry
def __init__(self, date, meal_type, food, calories):
super().__init__(date) # Call the parent (Logentry)
self.meal_type = meal_type
self.food = food
self.calories = calories
๐ Step 3: Read and Clean CSV Filesโ
๐ Manual Reading with CSV Moduleโ
There are two main routes to load the csv file. The first one is using the module csv and load it onto a list. In doing so, we use the strip()
and the int()
methods.
The strip()
method is used to remove leading and trailing whitespace (spaces, tabs, newlines) from a string. This helps preventing Common Data Entry Issues caused by human or automated data entry, Accurate Comparisons/Lookups and Errors when applying to another type conversion for example with int()
.
The int()
function is used to convert a string or a float into an integer so that we can do numerical operations with it.
import csv
def read_workouts_manual(file_path):
workouts = []
with open(file_path, newline='') as csvfile: # Opens and automatically closes when finished
reader = csv.reader(csvfile) # Creates an object that can iterate over lines
next(reader) # Skip header
for row in reader:
# Create a Workout object for each row and add to workouts list
date = row[0].strip()
workout_type = row[1].strip()
duration = int(row[2].strip())
calories = int(row[3].strip())
workouts.append(Workout(date, workout_type, duration, calories))
return workouts
๐ Using Pandasโ
The second module that is used to load csv files and work with their information is pandas. Pandas loads the csv file information into a pandas dataframe. A Dataframe is two-dimensional labeled data structure with columns of potentially different types. This is the primary Pandas data structure and is essentially a table or spreadsheet.
You can access a dataframe cell by doing df.loc[row_label, column_label]
and a column by referring to its heading as below.
import pandas as pd
data = {'Name': ['Alice', 'Bob', 'Charlie','Andres'],
'Age': [25, 30, 35, 45],
'City': ['New York', 'London', 'Paris','Madrid']}
df = pd.DataFrame(data)
cell_value_default = df.loc[0, 'Name'] # Accessing row 0, column 'Name'
print(f"Cell at index 0, column 'Name' (default index): {cell_value_default}")
names_column = df['Name'] # Access the 'Name' column
print("The 'Name' column:")
print(names_column)
Below an example on how to access the rows.
# Access the row at integer position 1 (the second row)
row_pos_1 = df.iloc[1]
print("Row at integer position 1:")
print(row_pos_1)
print("-" * 40)
# Access multiple rows using a list of integer positions
multiple_rows_pos = df.iloc[[0, 2]] # First and third rows
print("Rows at integer positions 0 and 2:")
print(multiple_rows_pos)
print("-" * 40)
# Access a slice of rows using integer positions (exclusive of end)
slice_of_rows_pos = df.iloc[1:4] # From position 1 up to (but not including) 4
print("Slice of rows from position 1 to 3:")
print(slice_of_rows_pos)
print("-" * 40)
In our fitness tracker, the pandas library is used in the function load_and_clean_data()
. The method .fillna
is used to replace the cells with Not a Number NaN data.
import pandas as pd
def load_and_clean_data():
df_workouts = pd.read_csv('data/workouts.csv')
df_meals = pd.read_csv('data/meals.csv')
df_workouts['date'] = pd.to_datetime(df_workouts['date'])
df_meals['date'] = pd.to_datetime(df_meals['date'])
# Fill any missing values in workout data with zeros (e.g., missing durations or calories)
df_workouts.fillna(0, inplace=True)
# Fill any missing values in meal data with "Unknown" (e.g., missing food descriptions)
df_meals.fillna("Unknown", inplace=True)
return df_workouts, df_meals
๐ Step 4: Summarize and Merge Dataโ
Now is time to combine the workouts and meals using the pandas library to optain the net calories. To do that, we follow this sequence:
๐ Group rows df_meals.groupby('date')
:โ
This is the first and most crucial part. The groupby()
method is used to group rows together based on unique values in one or more columns.
In this case, df_meals
will be grouped by the unique values in the โdateโ column. Conceptually, pandas will create separate โgroupsโ for each unique date. For our example, there would be a group for โ2025-06-01โ, one for โ2025-06-02โ, and one for โ2025-06-03โ.
๐ Select a column ['calories']
:โ
After grouping, you typically want to perform an operation on a specific column within each group. ['calories']
selects the โcaloriesโ column from each of these created groups. This means that for each date group, we are now only interested in the calorie values.
๐ Calculate subtotals .sum()
:โ
This is an aggregation function. After selecting the โcalories_burnedโ column for each group, .sum()
calculates the total sum of โcaloriesโ for each respective group (i.e., for each unique date).
At this point, the output would be a pandas Series with the โdateโ as the index and the sum of โcaloriesโ as the values. It would look something like this:
date
2025-06-01 1350 (250 + 500 + 600)
2025-06-02 1450 (300 + 450 + 700)
2025-06-03 1250 (200 + 550 + 500)
Name: calories_burned, dtype: int64
๐ Re-Numbering the rows of the selection .reset_index()
:โ
As you can see from the previous step, after sum()
, โdateโ is the index of the resulting Series.
.reset_index()
converts the index back into a regular column. This is often desired for cleaner dataframes where you want the grouped column (โdateโ in this case) to be a proper column rather than the DataFrameโs index.
After reset_index()
, the output will be a new DataFrame:
date | calories |
---|---|
2025-06-01 | 1350 |
2025-06-02 | 1450 |
2025-06-03 | 1250 |
After that the two pandas dataframes for workouts and meals are merged and a new column with the 'net_calories'
is created.
The actual function that summarises the data in our fitness tracker is:
def summarize_data(df_workouts, df_meals):
workout_summary = df_workouts.groupby('date')['calories_burned'].sum().reset_index()
meal_summary = df_meals.groupby('date')['calories'].sum().reset_index()
combined = pd.merge(workout_summary, meal_summary, on='date', how='outer').fillna(0)
combined['net_calories'] = combined['calories'] - combined['calories_burned']
return combined
๐ Step 5: Visualize with matplotlibโ
The last function that we are going to write is the one that creates the plot of the workout, meal and net calories for every registered day. To do this, we simply load the matplotlib library and create a plot assembling each part as shown in the code below.
import matplotlib.pyplot as plt
def plot_fitness_trends(combined_df):
# Create a new figure with specified size (width: 16 inches, height: 10 inches)
# This creates a larger plot that is easier to read and analyze
plt.figure(figsize=(16, 10))
# Plot calories consumed with circular markers
plt.plot(combined_df['date'], combined_df['calories'], label="Calories Consumed", marker='o')
# Plot calories burned with x markers for visual distinction
plt.plot(combined_df['date'], combined_df['calories_burned'], label="Calories Burned", marker='x')
# Plot net calories (consumed - burned) with dashed line style
# This shows the caloric balance for each day
plt.plot(combined_df['date'], combined_df['net_calories'], label="Net Calories", linestyle='--')
# Calculate and plot a 2-day rolling average of net calories
# This smooths out daily fluctuations and shows the overall trend
rolling = combined_df['net_calories'].rolling(window=2).mean()
plt.plot(combined_df['date'], rolling, label="Rolling Mean (Net)", linestyle='dotted')
# Add axis labels with increased font size for better readability
plt.xlabel('Date', fontsize=14)
plt.ylabel('Calories', fontsize=14)
# Format the x-axis to display dates in YYYY-MM-DD format
# This ensures consistent date representation on the chart
date_format = DateFormatter('%Y-%m-%d')
plt.gca().xaxis.set_major_formatter(date_format)
# Rotate x-axis labels by 45 degrees to prevent overlap and increase font size
plt.xticks(rotation=45, fontsize=12)
plt.yticks(fontsize=12)
plt.title('Fitness Tracker Summary', fontsize=16) # Add a descriptive title to the chart with larger font
plt.legend() # Add a legend to identify each line in the plot
plt.grid(True) # Add a grid to make it easier to read values from the chart
plt.tight_layout() # Adjust layout to ensure all elements fit without overlapping
plt.show() # Display the completed chart
The resulting chart with the Consumed and Burned calories as well as the Net ones looks like:
โถ๏ธ Step 6: Main Programโ
Following best practices, we have left the main function to specify the flow of the program. This make it easier to review and to update the code.
def main():
df_workouts, df_meals = load_and_clean_data()
combined = summarize_data(df_workouts, df_meals)
print(combined)
plot_fitness_trends(combined)
if __name__ == "__main__":
main()
๐งช Practice Challengesโ
Try modifying or extending the project:
- Add weight tracking.
- Categorize meal types (e.g., โHigh Proteinโ).
- Export results to a new CSV file.
- Highlight days with a calorie surplus.
