Railway Transport

Table of Contents
  1. Chapter I: History of the Railway
  2. Chapter II: Regulatory Framework and European Railway Regulation
  3. Chapter III: Spanish Railway Sector
  4. Chapter IV: Reform and Modernization of the British Railway Sector
  5. Chapter V: Technical and Economic Characteristics of Railway Transport
  6. Chapter VI: Perspectives and Opportunities of the Railway
  7. Review Questions
  8. Bibliographic Sources

Chapter I: History of the Railway

Definition and Fundamental Concept

The railway constitutes a large-scale land transport system characterized by the movement of vehicles on guided wheels that circulate on parallel rails duly established. In its traditional configuration, railway vehicles are towed by a locomotive, a driving machine responsible for generating the energy and power required for the movement of the complete composition. This configuration has been fundamental in the evolution of land transport through the centuries.

Historical Background and Fundamental Components

The emergence of the railway as a modern transport system is the result of the convergence and refinement of three main technological innovations that evolved independently throughout history:

  • The wheel: a rotation device that significantly reduces friction in movement
  • The rail: a guiding structure that provides direction and continuity to the journey
  • The steam locomotive: a driving machine that supplies the power necessary for displacement

Technological Development During Industrialization

During the 17th century, coinciding with the growing demand generated by the Industrial Revolution and its requirements for mass transport of fuels such as coal, two crucial innovations emerged: the Watt engine (steam engine) and the first locomotives capable of circulating on specialized paths. However, it is important to highlight that both the wheel and the rail precede the modern railway by several millennia.

Technological antecedents reveal that:

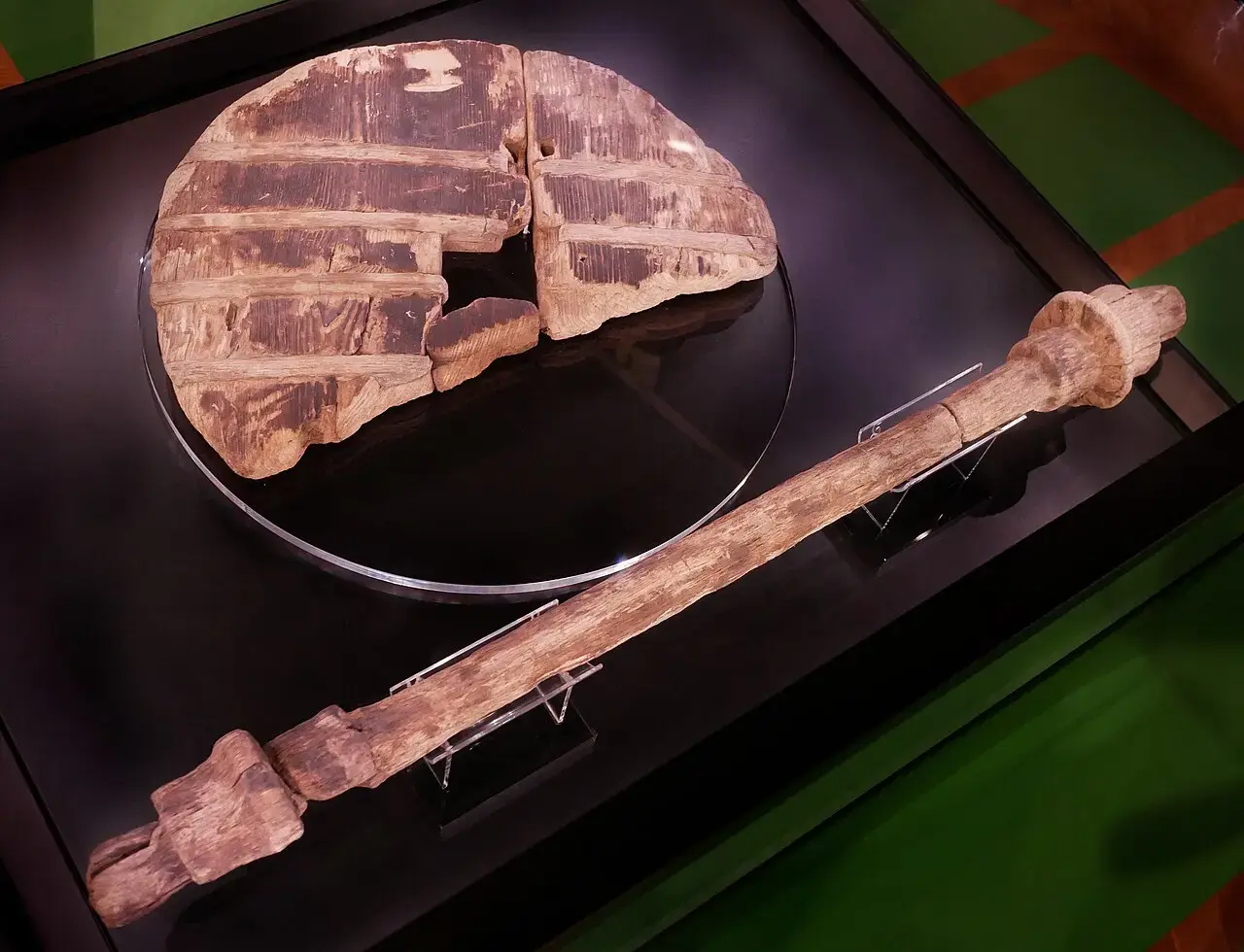

  • Wheel and assembled axle: the oldest wheel found dates from the year 3,100-3,350 B.C., found in Ljubljana Marshes Wheel in Slovenia in 2002.
  • Initial track gauge: its original definition responded to the space required for the harnessing of pairs of draft animals, which subsequently standardized the track gauge through natural grooves in ancient roads.

e8d78e43094116a9c4ea84e305310d1d_MD5 Ljubljana Marshes Wheel

Typologies of Guidance Systems

Throughout the history of transport on tracks, different technical solutions have been developed to ensure adequate vehicle guidance:

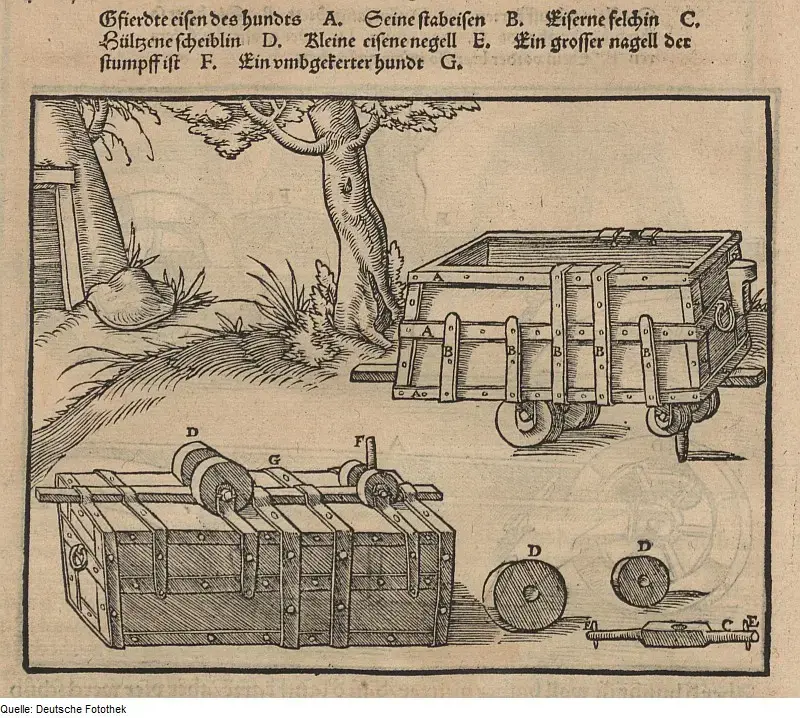

adff9cbd24e9b33d3a3681a575601cb9_MD5 Groove guidance

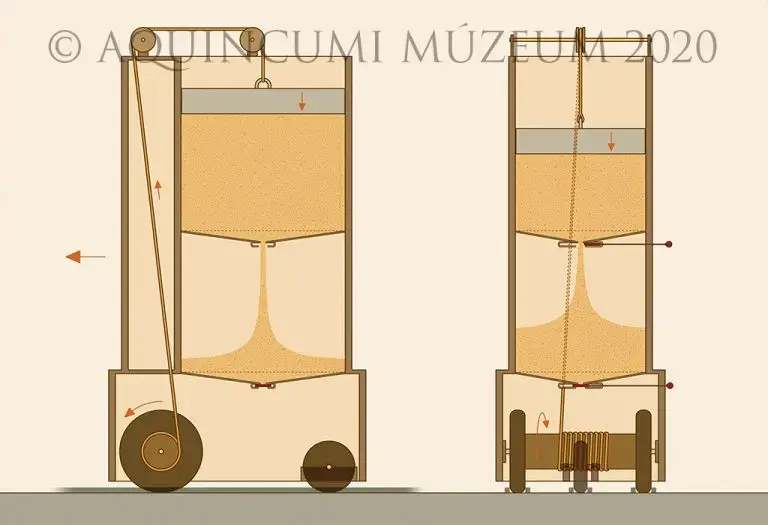

69f974241927ebb03c9d35b07a32520a_MD5 Rail guidance

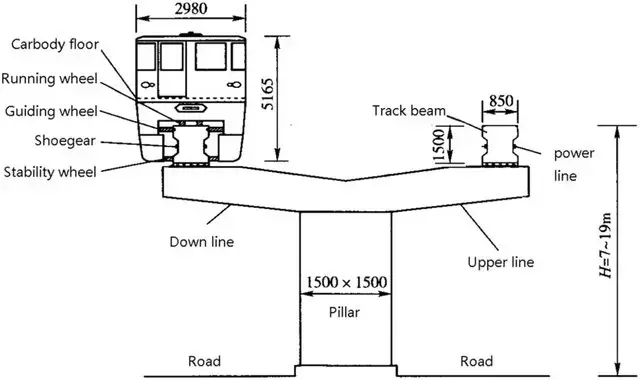

60c3be0eb84ced833144d437385d1c62_MD5 Monorail

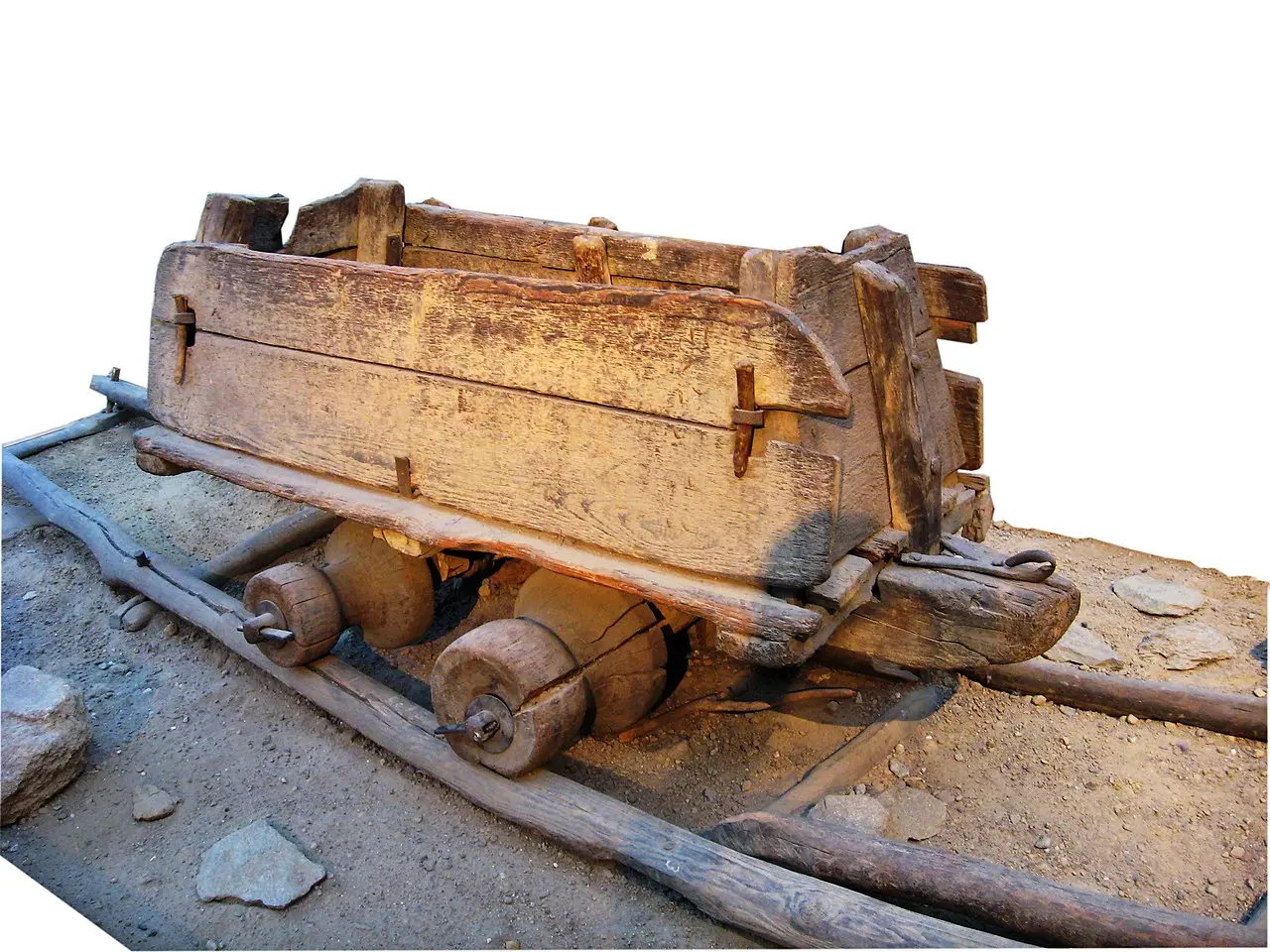

a309de23941790c3a315ad87100f2da4_MD5 Flange guidance

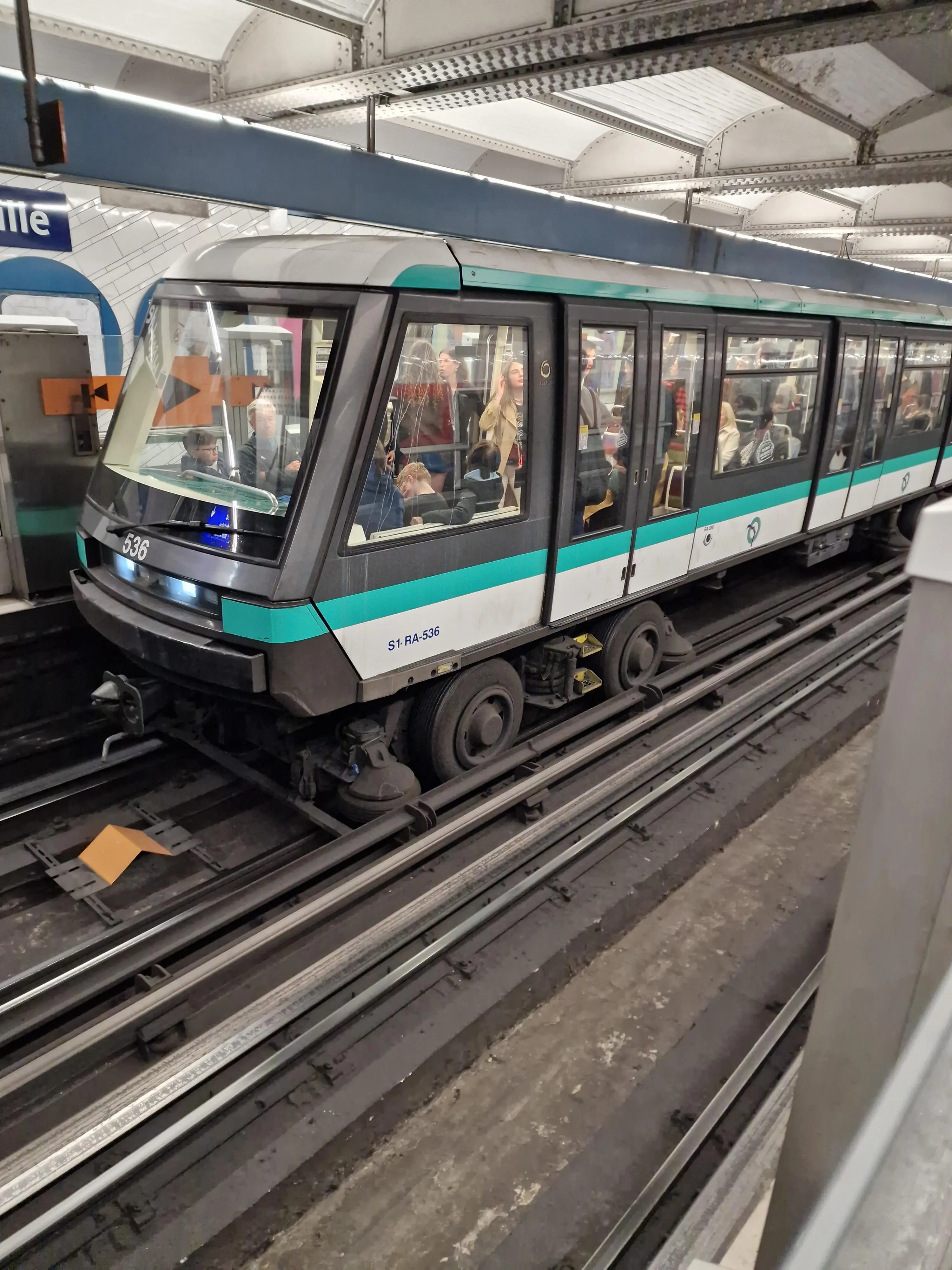

7b3eb95271b41f0e89605319208bb4cb_MD5 Wheel guidance

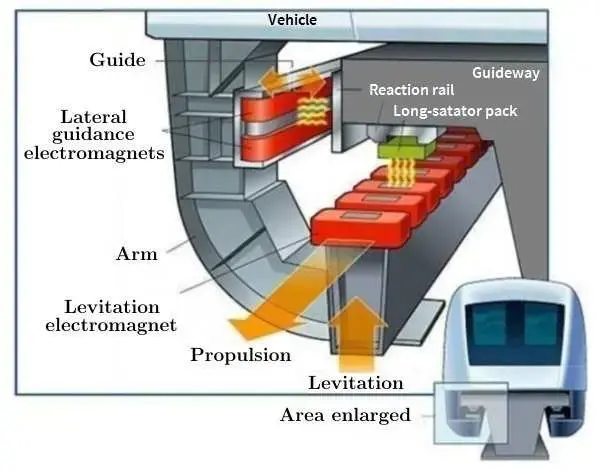

73db3fb37d81f6304f0b6e87043eca03_MD5 Magnetic guidance

First Flange Guidance Systems

Flange guidance, which emerged during the 17th century, represents one of the first documented guidance systems, although its exact origins remain partially obscure, generally attributed to England and Eastern Europe. In their beginnings, these systems used wooden rails that were later replaced by iron rails, significantly improving durability and load capacity.

Older Background of Transport Systems on Tracks

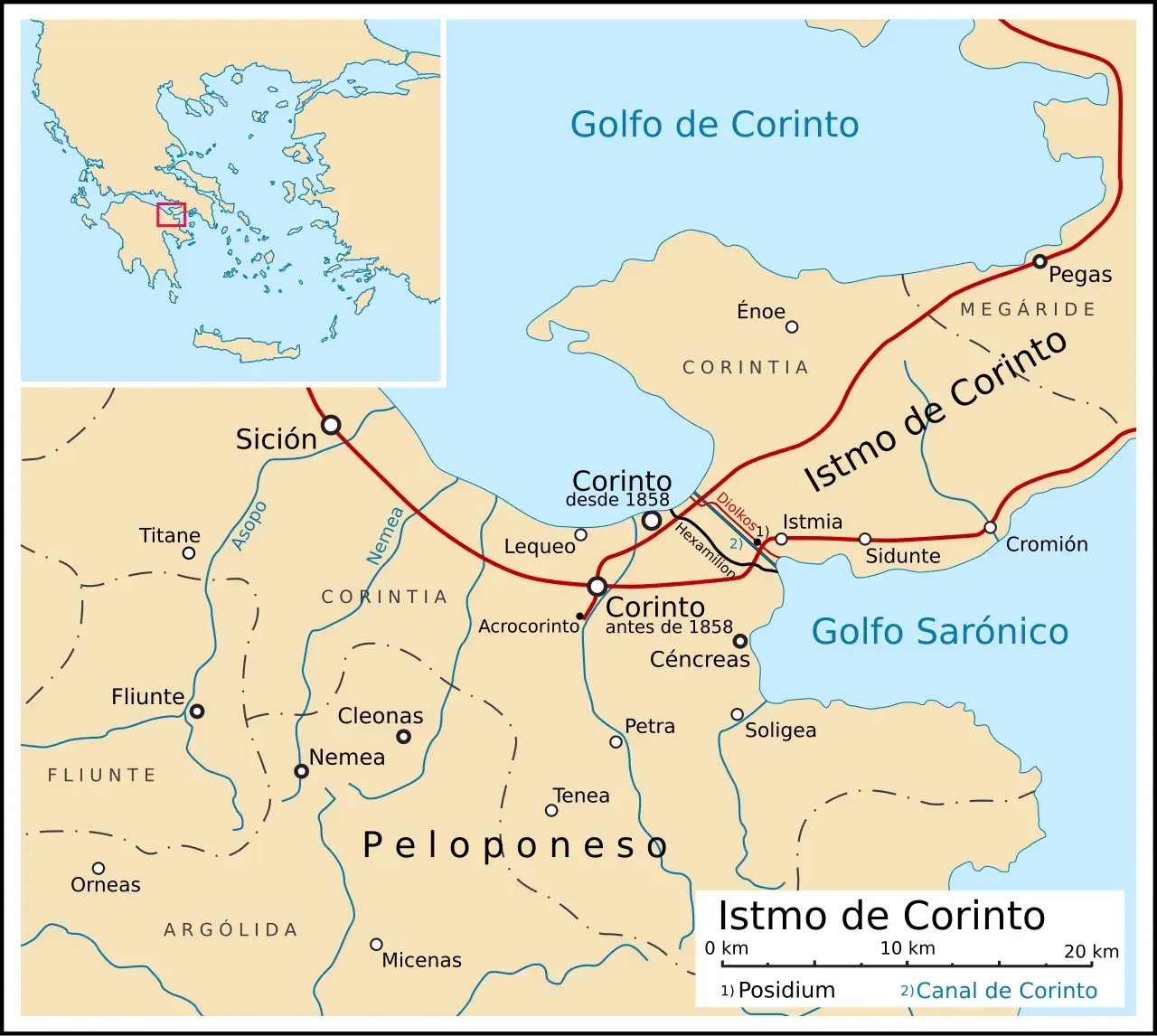

The first historical evidence of a transport system on rails comes from Ancient Greece and dates from the 6th century B.C. It is the Diolkos line, a transport path located on the Isthmus of Corinth that extended for approximately 6 kilometers. This primitive system was used to transport complete vessels on moving platforms across the isthmus. The most notable technical characteristic of this system is that it employed grooves excavated directly into the stone, constituting perhaps the first documented example of guidance by fixed track.

4b544f072c4bc467a35d18c90dd47a1f_MD5 Isthmus of Corinth

8cfe703a5a095600051f6d988451b451_MD5 Ship transport across the Isthmus of Corinth

Medieval and Renaissance Development of the Railway in Europe

The appearance of railways in European territory dates back to the late medieval period. The first documented record of a railway in Europe during this period is found in a stained glass window of the Cathedral of Freiburg im Breisgau, dating from approximately the year 1350. This iconographic representation constitutes invaluable evidence of the knowledge and application of transport systems on tracks during the Late Middle Ages.

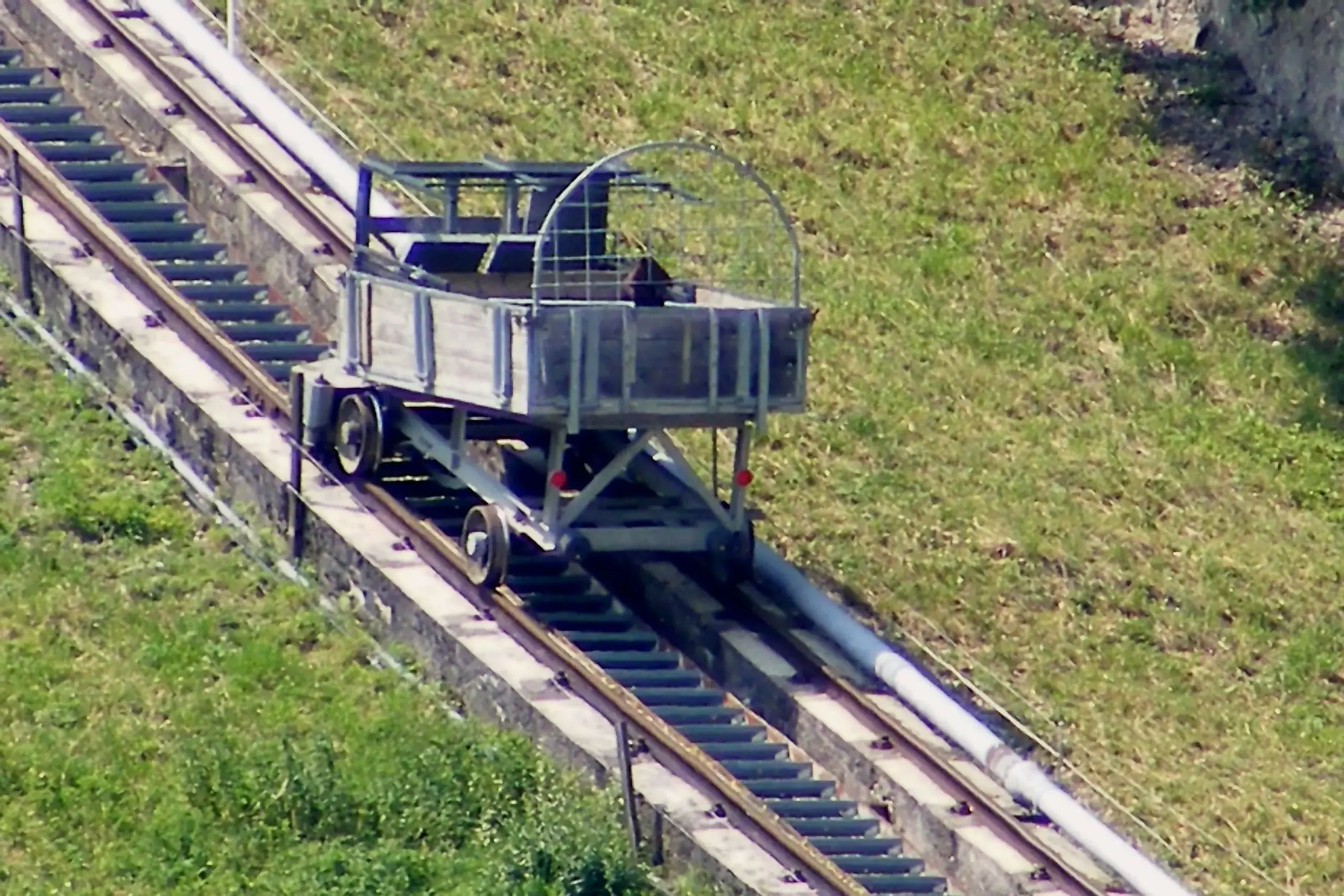

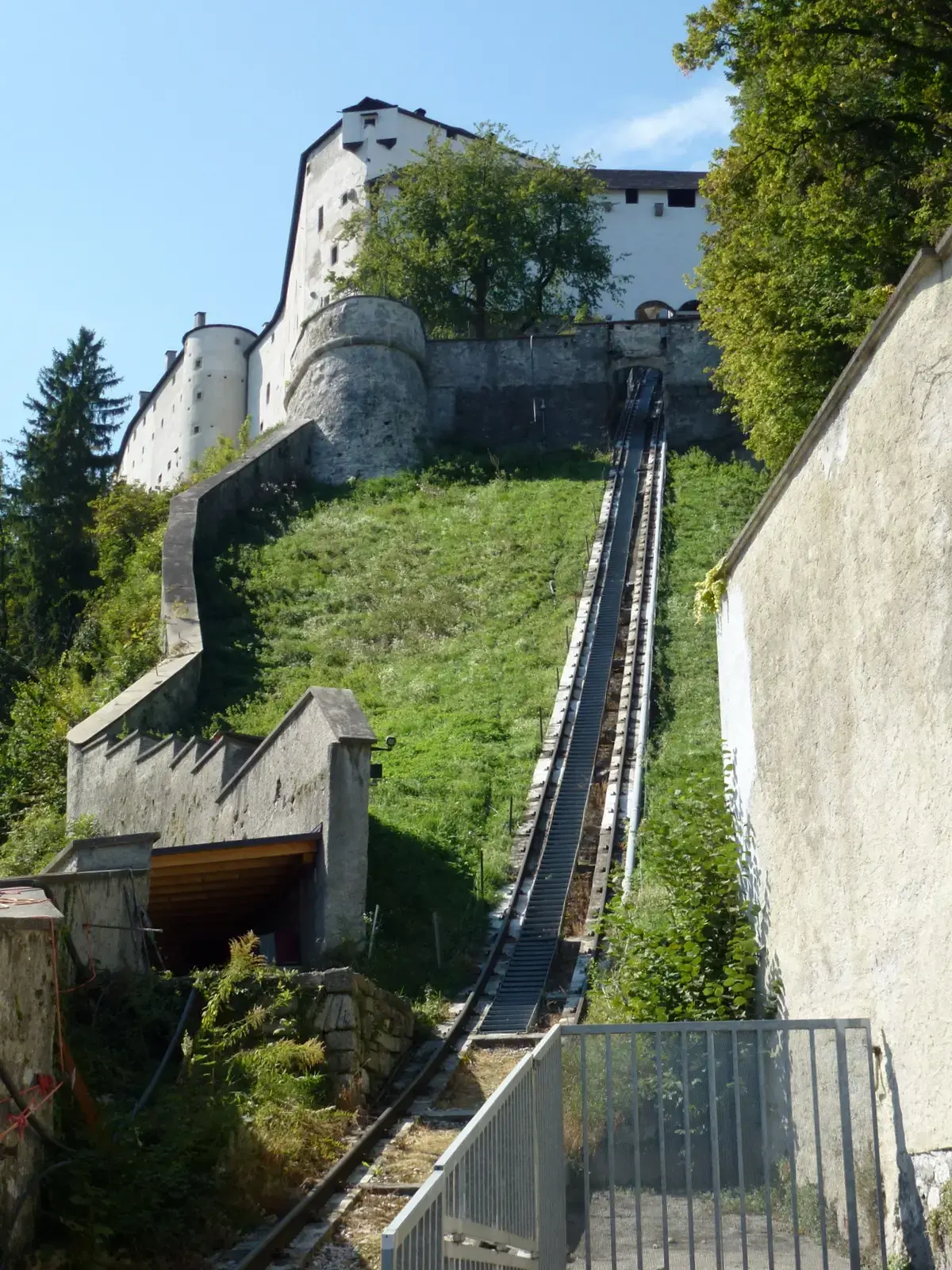

A significant technical contribution occurred in the year 1515, when Cardinal Matthäus Lang wrote the description of a funicular of considerable technical importance located at Hohensalzburg Castle (Austria), called «Reisszug». This revolutionary system used wooden rails and operated by means of a hemp rope actuated by human or animal power. Notably, this line continues to operate today, having been completely modernized with contemporary equipment, making it one of the oldest railway lines still in service.

5d427b211ee1f2bc09a9bfcf776490de_MD5 Freiburg Cathedral

a4ede4bbf61597cfaa2c5b884c516de7_MD5 eb20250a30e9f9a129014d4b8707ebb8_MD5 Funicular at Hohensalzburg Castle «Reisszug» (1515)

Evolution of Track Systems since the Modern Age

From the year 1550 onwards, there was a significant expansion of narrow-gauge lines with wooden rails in European mining operations. Throughout the 17th century, these primitive railway systems evolved considerably, allowing wooden wagons to transport minerals from the interior of the mines to connected canals, where the transshipment of ore to river transport systems took place. This gradual technical evolution finally led to the inauguration of the first documented permanent tramway in 1810, the so-called «Leiper Railroad» located in Pennsylvania.

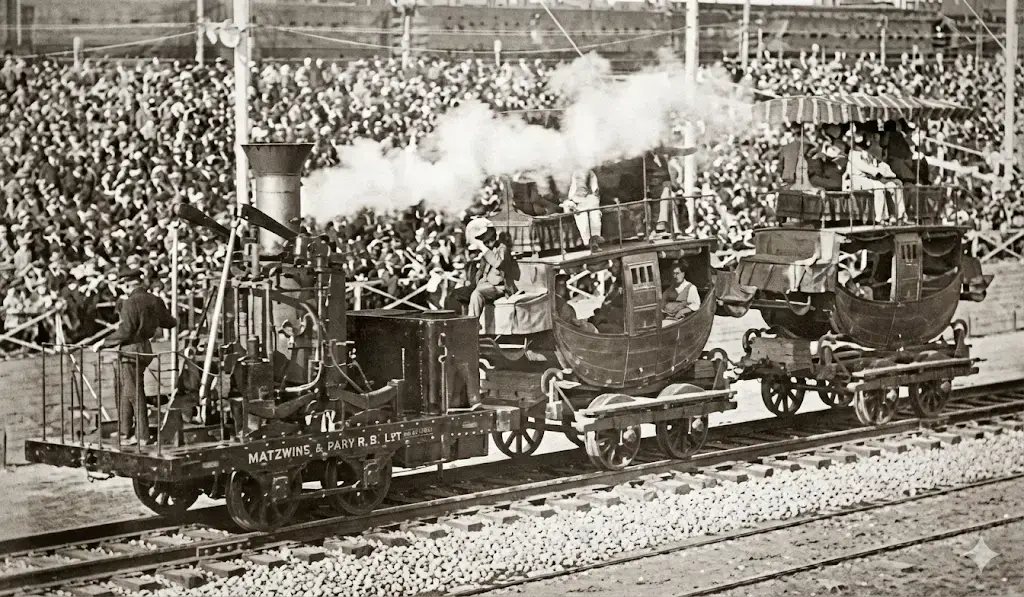

3e18b9bec6dca7d1f8ba5a5b5523523e_MD5 B&O’s first steam locomotives A crucial technological milestone occurred in 1768 with the manufacture of the first iron rail, which consisted of a wooden body clad with an iron plate. 1260352383ad6780dbacc204237beb49_MD5 Derby Canal Railway

This innovation allowed for the elaboration of considerably more complex and resistant track apparatus. In early systems, the reversal of consists was performed by simple loops at the end of the line, although switches (turnouts) soon emerged, revolutionizing the operational flexibility of railway networks.

2a09226481216391f02834b17b1513a3_MD5 Cornish Miners Working at Dolcoath

Starting in the year 1790, the use of the first full steel rails was introduced in the United Kingdom, eliminating the need for cladding and drastically improving durability. In 1803, engineer William Jessop marked a historical milestone by inaugurating the «Surrey Iron Railway» south of London, establishing itself as the first public railway pulled by horses, demonstrating the commercial viability of this transport system.

07e5443012e71a2123a16045cf2f45e4_MD5

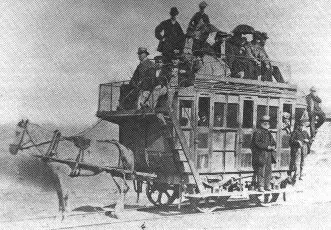

The Swansea and Mumbles Railway ran the world’s first passenger tram service in 1807

7798138a021df166dc0cefbaceb32aaa_MD5

London tramways

The Steam Era: Revolution of Mechanized Traction

The industrialization of railway transport is founded on the development of the steam engine. Between 1769 and 1782, inventor James Watt patented the steam engine with significant improvements, although initially, these units were too heavy and operated at insufficient pressures for their direct application in locomotives.

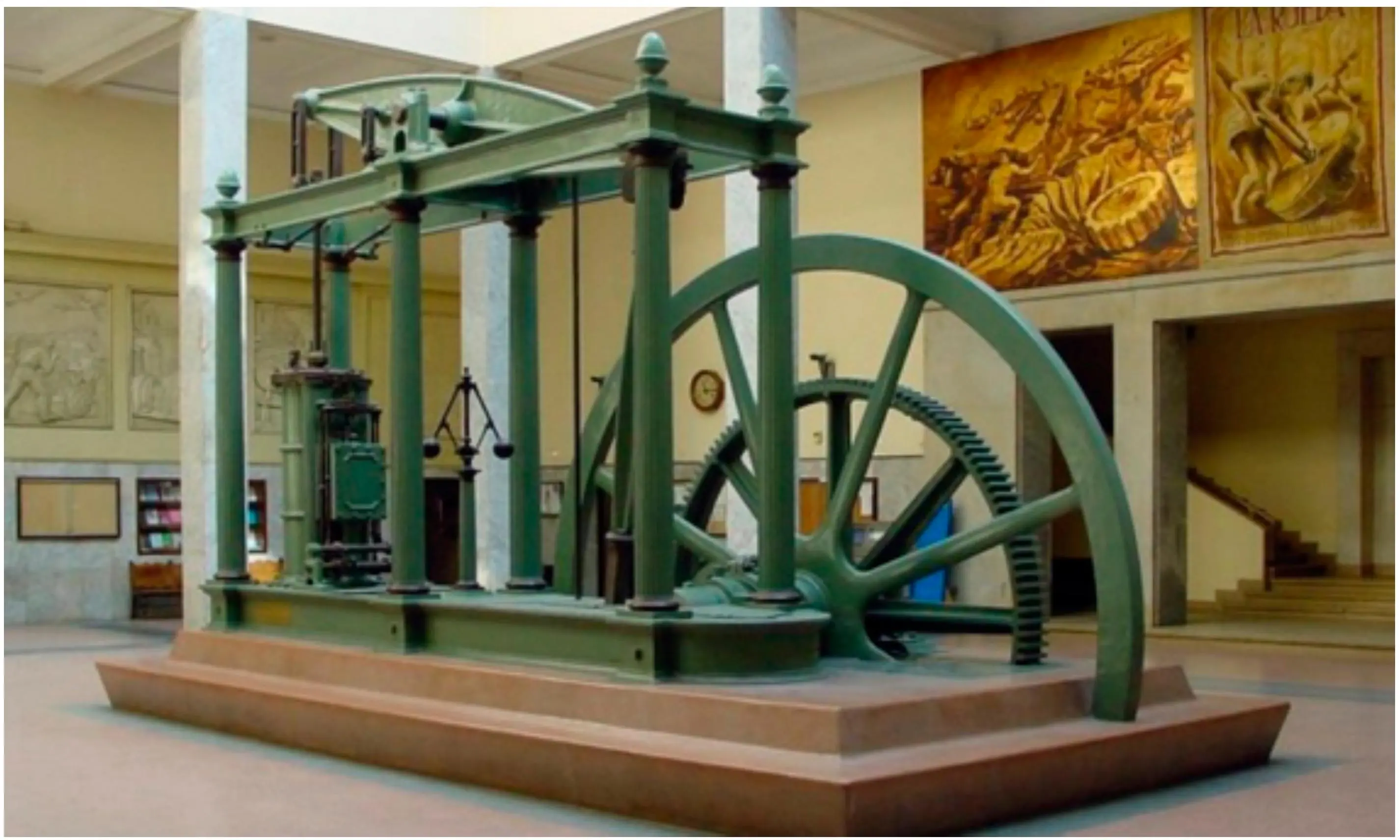

42f1c36c7c2898c4acb790ad343c483f_MD5 Watt-type steam engine, built by D. Napier and Son (London, 1859)

The first milestone in mechanical railway traction was reached in 1804, when Richard Trevithick presented the first locomotive capable of effectively hauling a complete train in the United Kingdom. Built in collaboration with Andrew Vivian, this revolutionary machine achieved relative success, although its excessive weight caused the breakage of the fragile iron plate rails available at that time.

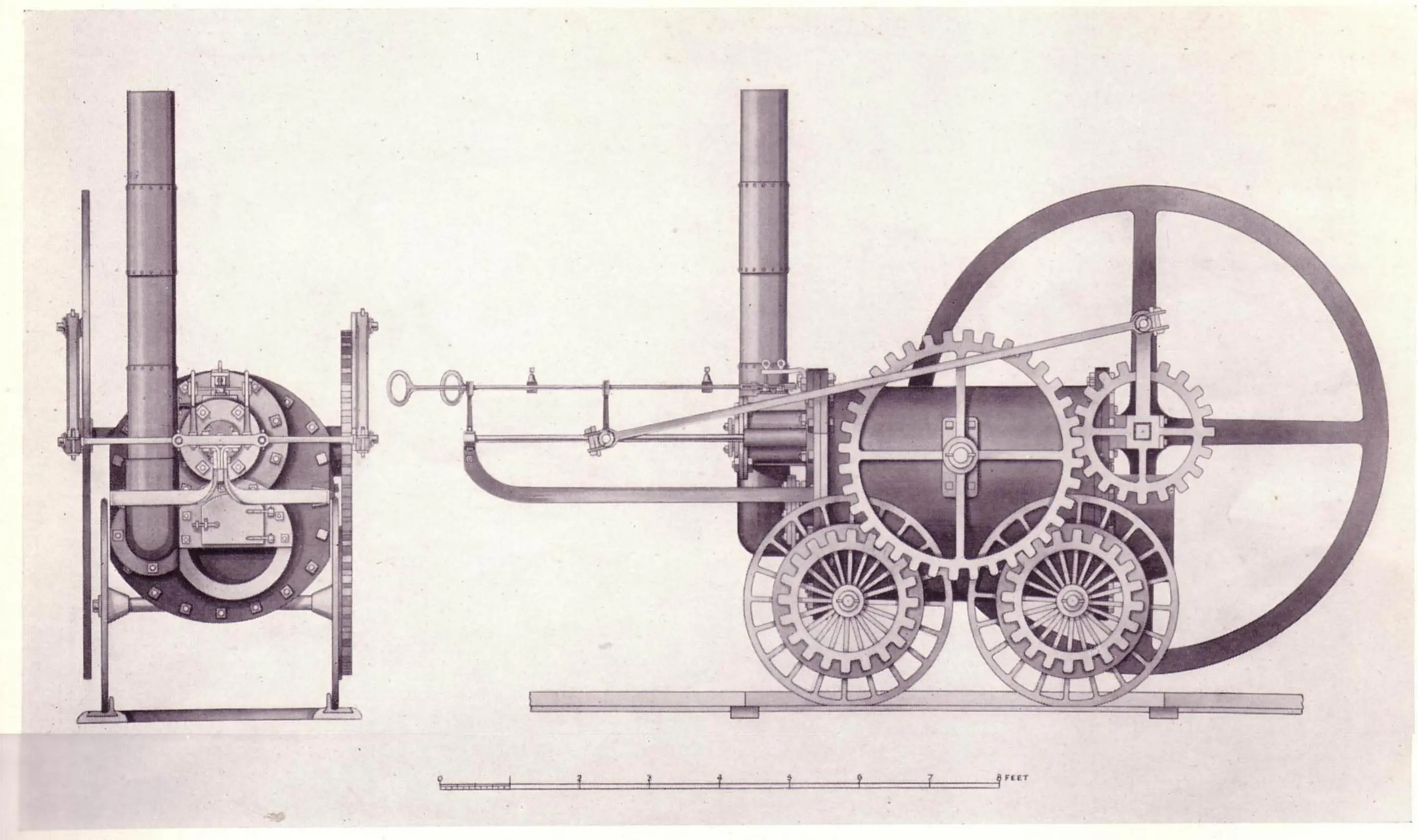

2beeeaf25137bbc602c6cf378665ce69_MD5 Trevithick’s Locomotive (1804)

Seven years later, in 1811, John Blenkinsop designed the first functionally viable locomotive, which was publicly presented on the railway line connecting Middleton with Leeds. The locomotive, named Salamanca, was built in 1812 and represented a significant advance by incorporating a rack system that allowed it to overcome steeper gradients than conventional adhesion systems.

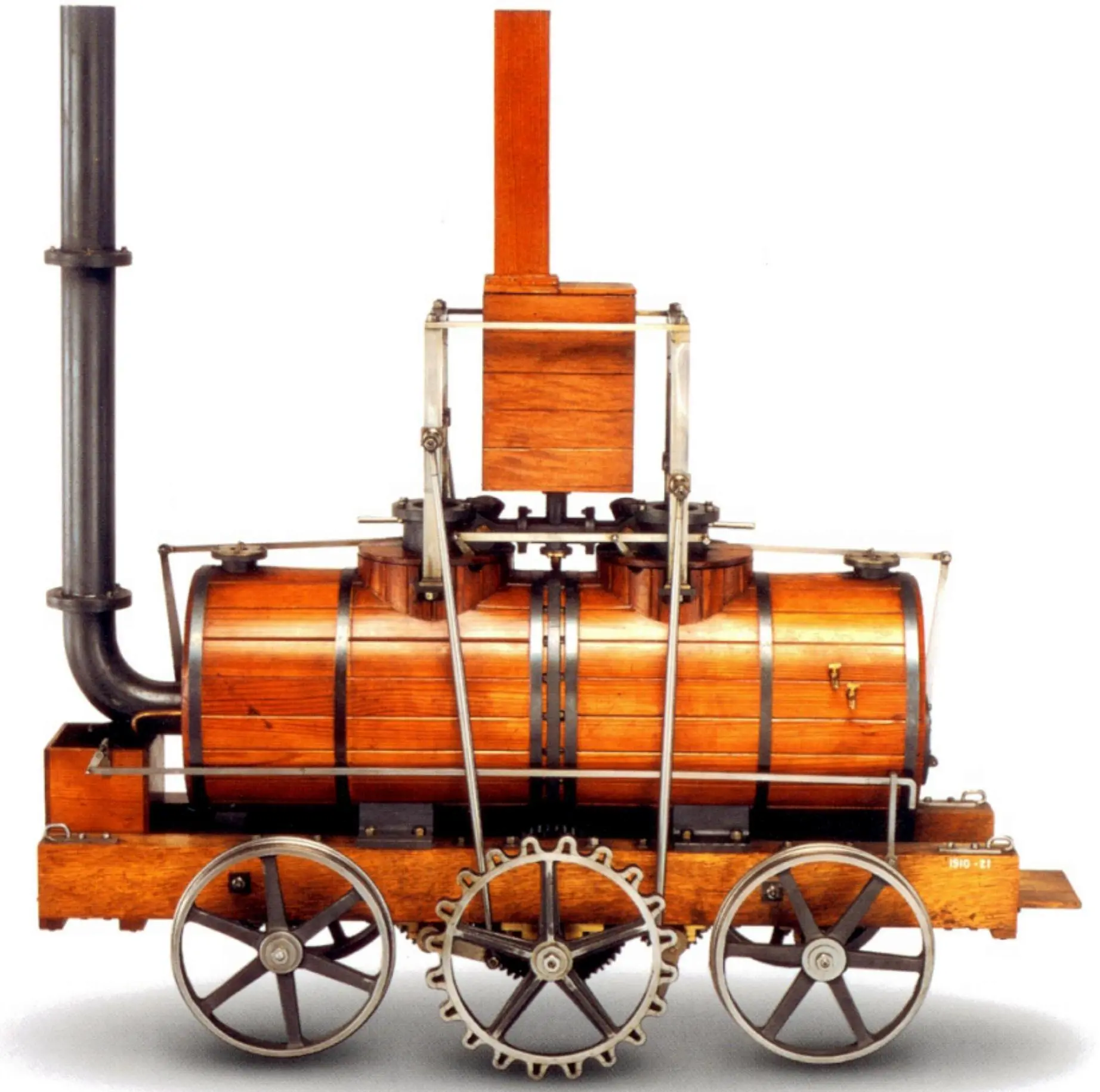

d07d957bd8689419a920c2466d6f6d0c_MD5 Salamanca: First rack locomotive by John Blenkinsop

An advance of prime importance occurred in 1825, when George Stephenson built the Locomotion, a steam engine of superior specifications used on the railway line between Stockton and Darlington, located in north-east England. This locomotive is of fundamental historical importance, as it constitutes the first steam engine to have effectively hauled public passenger and freight transport services.

5e52d87901ec9d34839c5d1184776978_MD5 Locomotion by George Stephenson (1825)

Global Expansion of the Steam Railway

In 1829, George Stephenson achieved a technological milestone of supreme importance by building the locomotive The Rocket, whose operational success definitively consolidated the technical viability of mechanical railway propulsion. The recognition of these technical capabilities motivated Stephenson to establish the first manufacturing company specialized in the construction of steam locomotives, whose products were widely adopted on railway lines in Europe and the United States.

The year 1830 marks the inauguration of the first intercity railway line of commercial importance, the line connecting Liverpool with Manchester. This line adopted a track gauge of 1435 mm, a dimension currently called standard gauge (or international gauge) because approximately 60% of contemporary railways worldwide use this technical specification. The operational and commercial success of these steam locomotives during the subsequent years led to the proliferation of railway lines and driving machines across practically all regions of the planet.

Electrification and Dieselization: New Energy Sources

The era of electric propulsion in railways began with pioneering experiments in 1838, when Robert Davidson conducted the first successful tests with trains powered by electric batteries, achieving a speed of 6.4 km/h with his experimental carriage.

Almost five decades later, in 1883, the first railway with electric rail supply was inaugurated: the tram running between Portrush and Giant’s Causeway, located in Northern Ireland, which uses a supply system via a third rail. In 1888, power cable systems for railways were incorporated into trams that until then were towed by horse traction. The first completely electrified conventional railway line corresponds to the Roslag line in Sweden, which marks a milestone in the adoption of electrical systems.

All initial electrical installations used direct current for their operation, until in 1904 the first line implementing alternating current was introduced in Austria, significantly improving energy transmission efficiency.

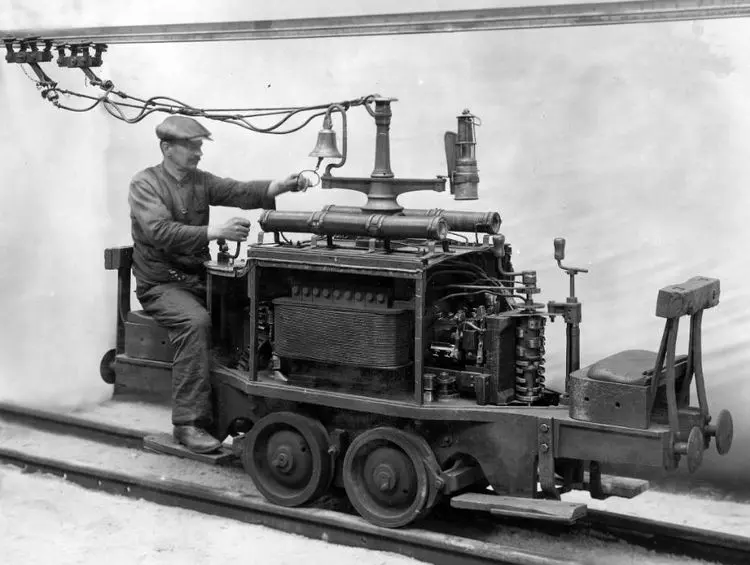

2dfe7db4842e7ffa4fb136de35d53637_MD5 Siemens electrical locomotive

Transition from Steam to Diesel and Sector Transformation

Steam locomotives, despite their historical importance, require considerable maintenance procedures to maintain their operability. The technological development of internal combustion engines, significantly driven by demands derived from war conflicts, allowed the creation of diesel locomotives that were more economical in operation and potentially more powerful. This situation motivated multiple railway operators to initiate systematic fleet conversion programs, progressively replacing steam engines with diesel units on non-electrified lines.

In parallel, other technological and economic factors negatively impacted the railway. The accelerated construction of highway networks, the strengthening of road transport through buses and trucks, and the emergence of commercial air transport caused a considerable reduction in railway traffic volumes during the decades from 1950 to 1970. 94af864f5923509d6e66ea8d342051c2_MD5 Renfe electric train in Leon

However, the oil crisis of 1973 significantly reversed this downward trend. The scarcity of fossil fuels and the rising cost of oil restored the economic competitiveness of trams and railway systems that had not been dismantled, allowing many of these services to continue operating in contemporary days with renewed commercial profitability.

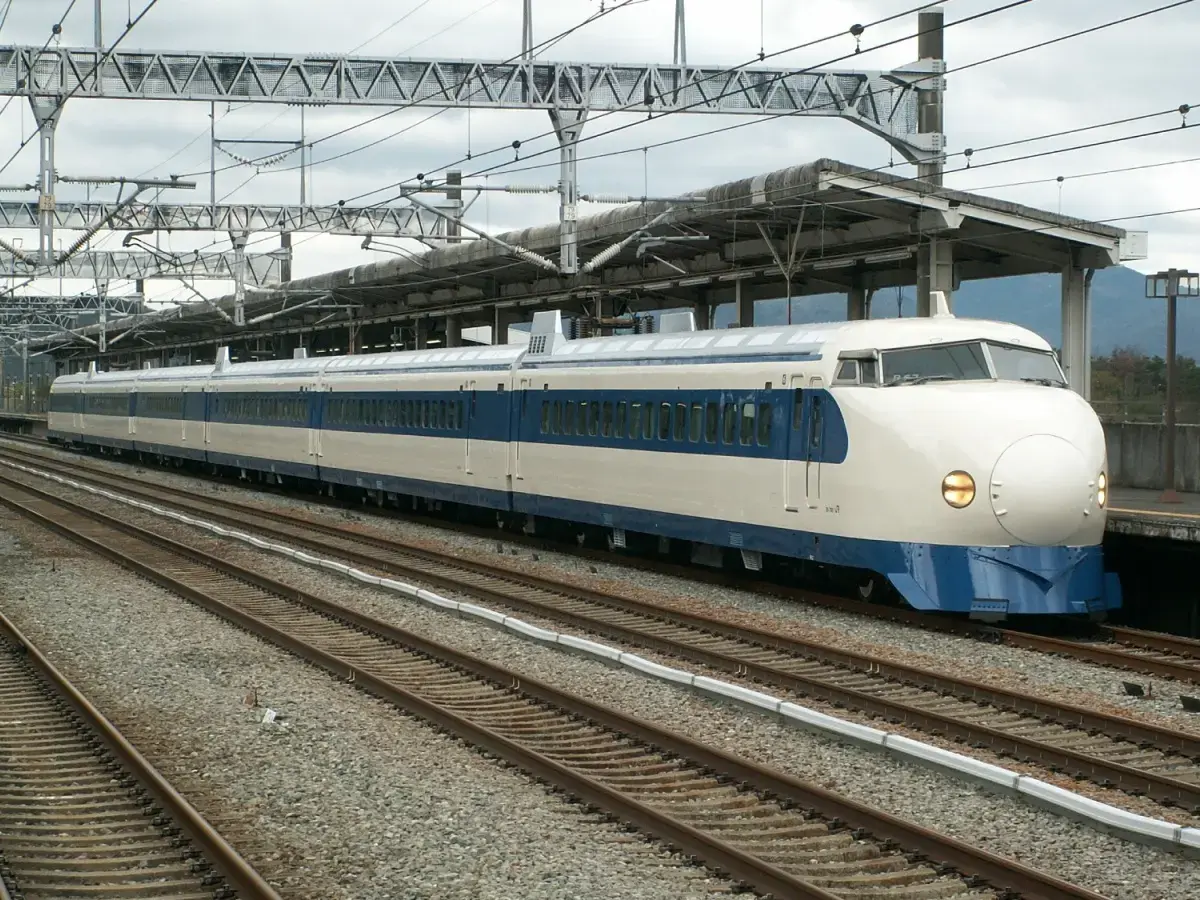

The invention of the high-speed train in Japan in the year 1964 constitutes a fundamental change in the modality, allowing the recovery of intercity passenger transport demand. This technological advance consolidates the validity of the railway as a competitive transport alternative. 5a8b426009723493f37958d9fd418154_MD5 Shinkansen 0 in Japan

The Contemporary Era (2020 – 2025)

The current decade marks a significant shift towards environmental sustainability through green propulsion technologies (hydrogen) and extreme speeds (Maglev and next-generation high-speed trains).

During this period, relevant technological milestones have been achieved that demonstrate the global commitment to railway modernization:

Hydrogen Propulsion: In September 2024, the United States inaugurated its first passenger train powered by hydrogen, the ZEMU (Zero Emission Multiple Unit), in San Bernardino, California. This development represents a crucial advance towards completely decarbonized railway transport systems, especially in regions where track electrification presents technical or economic difficulties.

Extreme Speeds in Conventional Railways: In July 2025, China completed operational tests of the CR450 model (China Railways 450), which establishes new speed records for conventional railways. This train represents the evolution of high-speed technology with significant improvements in energy efficiency, passenger comfort, and operational capacity.

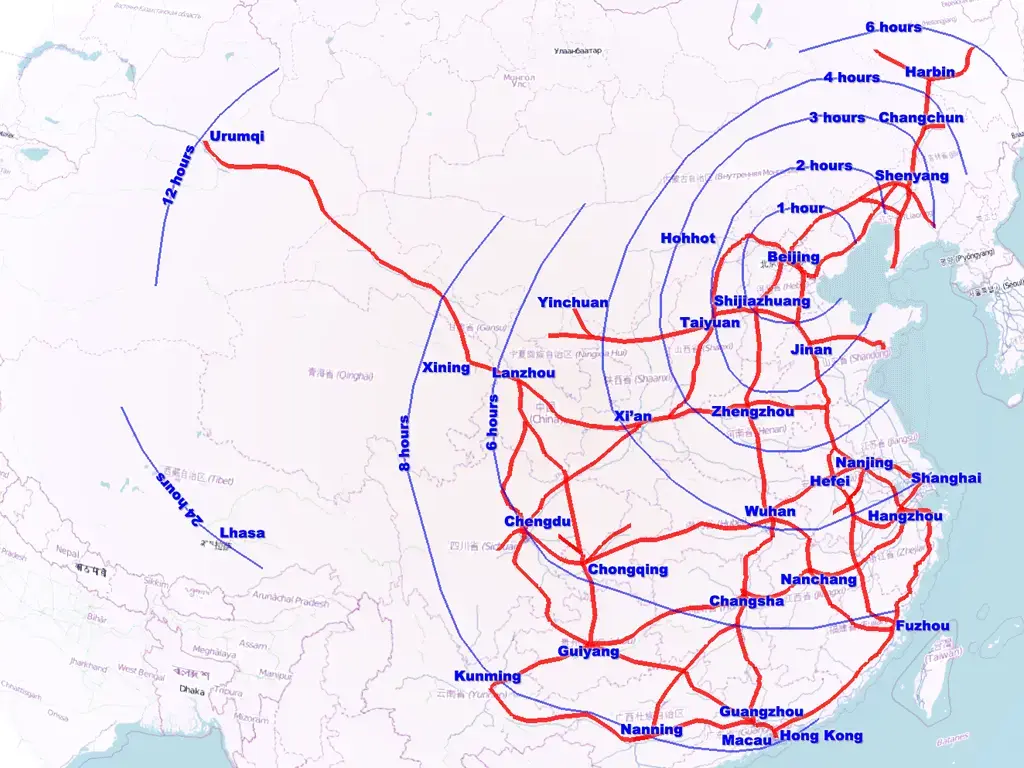

Massive Expansion of High-Speed Networks: By December 2025, China has consolidated a network of dedicated high-speed lines that significantly exceeds the combined capacity of the rest of the world. This high-speed railway network covers connections between all provincial capitals from Beijing, completely transforming intercity mobility patterns in Asia.

e1c55e7b4c4c1e3557634c872594cb5b_MD5

Comparison of Extreme Speed Railway Technologies (2025)

By the end of 2025, the boundary between “fast” and “ultra-fast” transport systems continues to blur as new technologies are incorporated operationally. The following table summarizes the development status of the main extreme speed railway technologies:

Technology Train Model Speed Achieved Operational Status (2025)
Maglev (Magnetic Levitation) L0 Series (Japan) 603 km/h Advanced testing phase / Prototype
Conventional Railway CR450 (China) 450+ km/h Operational tests
Established Commercial Service Fuxing Hao (China) 350 km/h Daily active service
Hydrogen Hybrid Train ZEMU (USA) 160 km/h Initial regional service

These technologies represent the evolution towards more sustainable, safer, and efficient railway systems, consolidating the position of the railway as a strategic solution for 21st-century intercity mobility.

Chapter II: Regulatory Framework and European Railway Regulation

Background of Regulatory Reform

At the beginning of the 1990s, the European Commission identified structural economic problems and significant traffic loss in the European railway sector, particularly in the freight transport subsector. In response to these problems, the Commission presented in 1990 the communication titled “Community Railway Policy”. This document represents the first deliberate step towards the economic, legal, and business separation of infrastructure and operation functions, simultaneously initiating a liberalization process by opening the market to private operators.

Regulatory development culminated with the approval of Directive 91/440, which establishes the legal foundations for opening the railway market in Europe, constituting the primary regulatory framework for the sector’s transformation.

Directive 91/440: Pillars of Structural Reform

Until the promulgation of this directive, all major European national railway companies operated under national state control with a monopolistic management character and strong dependence on governments. Directive 91/440 introduces fundamental obligations that structurally transform the sector:

  • Functional Separation: Establishes the obligation to separate infrastructure management from operation functions, assigning infrastructure management to state authorities and allowing operation to be carried out by public or private companies. This separation is mandatory from an accounting point of view and optional from the organizational perspective of the companies.

  • Public Service Contracts: Promotes the creation of contractual agreements between states and companies to regulate the management of infrastructure and regional and suburban services. Long-distance and freight services must be self-financed through commercial revenues.

  • State Financial Restructuring: The state assumes the historical debt of railway companies, allowing the restructuring of their financial balances and introduction into a competitive framework with more sustainable cost structures.

  • Access to Infrastructure: Guarantees that the state must ensure free access and transit to international railway companies for the provision of international transport services.

  • Operational Autonomy and Charging Regime: Operating companies acquire management autonomy, being obliged to pay charges (track access charges) to states for the use of railway infrastructure.

Complementary Directives 95/18 and 95/19

As an operational consequence of Directive 91/440, two complementary directives emerge that develop specific implementation mechanisms:

Directive 95/18: Establishes specific criteria for granting licenses to railway companies established in the European Union. Applicant organizations must demonstrate:

  1. Good business reputation and background
  2. Sound and viable financial situation
  3. Certified professional competence of their human resources
  4. Possession of civil liability insurance

Directive 95/19: Defines operational rules for the allocation of infrastructure capacity (later modified in 2001). This regulatory instrument covers:

  1. Procedures for allocation of infrastructure
  2. Mechanisms for collecting charges for the use of available capacity
  3. Obligation for infrastructure managers to publish detailed annual network statements
  4. Creation of national regulatory bodies in each member country, responsible for supervising the development of the railway system and arbitrating conflicts, particularly those related to network access and pricing.

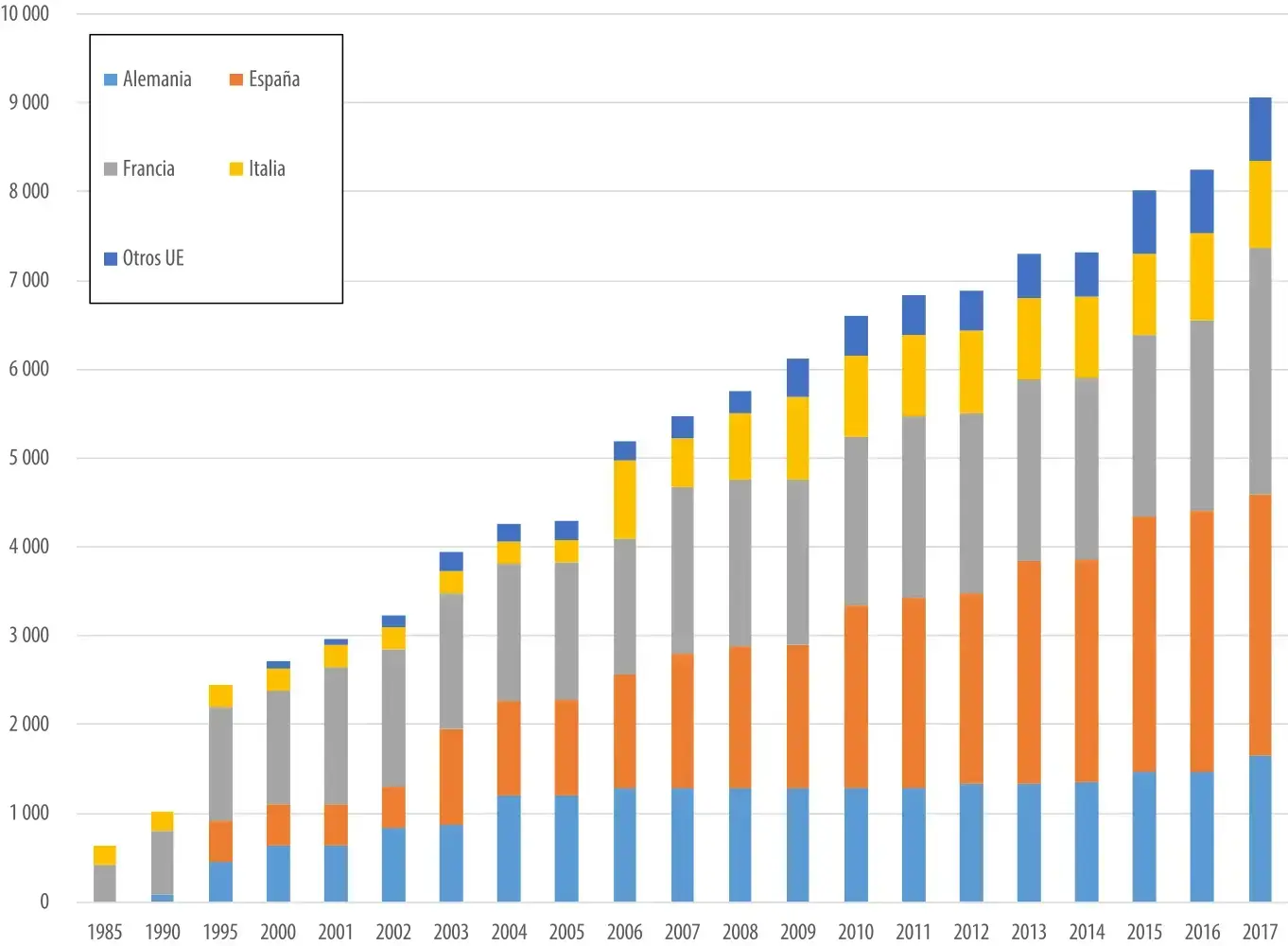

b5486bcfa5f741aa7e23f2ae2699718f_MD5

EU Statistical Pocketbook 2017; UIC. Source

First Railway Package (2001)

The First Railway Package consists of three directives (2001/12, 2001/13, 2001/14) that modify and significantly expand previous regulation (Directives 91/440, 95/18, and 95/19). These measures deepen liberalization and improve access to infrastructure, in addition to establishing the obligation to create regulatory bodies for railway activity in each country. Added to this set of directives is subsequently Directive 2001/16, which addresses critical aspects of interoperability of the trans-European railway system.

Directive 2001/12 - Modification of 91/440:

  • Defines the role of the Infrastructure Manager as the body responsible for the installation, maintenance, and operation of infrastructure. The competencies of this body can include the management of control and safety systems, and it must enjoy guaranteed operational independence.

  • Maintains the voluntary nature of organic and institutional separation between infrastructure manager and operators, although it encourages this separation.

  • Establishes a schedule for liberalizing the freight market in two phases: In 2003, on the 50,000 km of tracks that make up the trans-European rail freight network; and in 2008, on the entire European railway network.

Directive 2001/13 - On licensing of railway undertakings:

This regulatory instrument expands the licensing regime (derived from Directive 95/18), extending it from exclusively international services to national services. It guarantees fair, transparent, and non-discriminatory treatment in authorization granting procedures for all operators.

Directive 2001/14 - Allocation of capacity and infrastructure:

  • Repeals previous Directive 95/19, replacing its regulatory framework.
  • Regulates the allocation of infrastructure capacity, the application of charges for track use, and safety certification procedures.
  • Establishes that capacity allocation will be exercised by an independent body, which can be the infrastructure manager provided it demonstrates complete independence from railway operators.
  • Defines that charges must be calculated on the basis of marginal costs, i.e., those directly linked to the additional operation of the railway.

Second Railway Package (2004)

The Second Railway Package has the strategic objective of revitalizing the railway through the rapid construction of an integrated European railway area. The five main actions proposed follow the guidelines of the 2001 Transport White Paper.

Strategic objectives to reinforce:

  1. Safety through homogeneous standards
  2. Technical interoperability between systems
  3. Opening rail freight transport to competition
  4. Creation of a European Railway Agency tasked with directing technical work on safety and interoperability
  5. Facilitating the accession of railway companies to OTIF (Intergovernmental Organisation for International Carriage by Rail)

With these objectives defined, in 2004 the three component directives of the Second Railway Package (2004/49, 2004/50, 2004/51) were launched.

Directive 2004/49 - Railway Safety: Amends 95/18 and 2001/14. Establishes that a coherent European railway area requires common rules guaranteeing identical safety standards in all countries.

Directive 2004/50 - Interoperability: Amends 96/48 and 2001/16. Defines interoperability as the ability to circulate indistinctly on any section of the railway network. Improves Technical Specifications for Interoperability (TSI). It was incorporated in Spain in Royal Decrees 354/2006 and 355/2006.

Directive 2004/51 - Freight Liberalization: International services on the trans-European network were liberalized before January 1, 2006. One year later, all national services. Proposes opening the market for international passenger services by 2010.

Third Railway Package (2007)

The Third Railway Package revitalizes international railway transport, reinforces passenger rights, and opens the sector to competition starting in 2010. It regulates rights from late 2009 on national and international routes.

Component regulatory instruments:

  • Directive 2007/58/EC (October 23, 2007): Liberalization of rail passenger services
  • Directive 2007/59/EC (October 23, 2007): Certification of train driving personnel in the European Community railway system
  • Regulation (EC) No 1371/2007 (October 23, 2007): Rights and obligations of rail passengers

b86d5777d9f6598112c864b9b7f35579_MD5

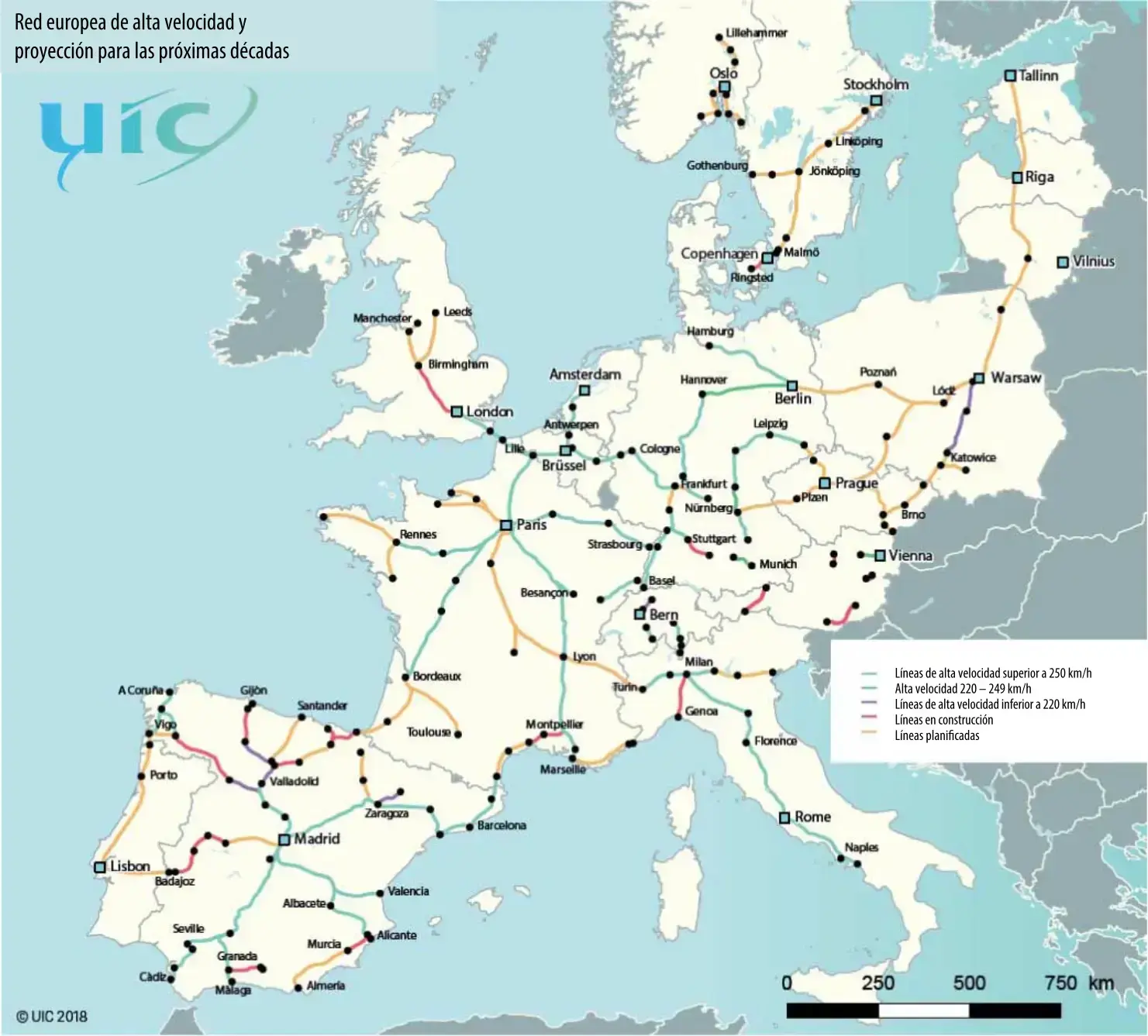

Map of the European high-speed network. UIC 2018

Fourth Railway Package

Composed of six legislative proposals articulated in four fundamental reform areas:

  • European Approvals: Single certification valid throughout the EU, reducing development costs and times. A single safety certificate for the entire European Union.
  • Efficient Infrastructure Management: Reinforcement of the role of managers and clear separation between track management and traffic operation.
  • Greater Access to Railway Networks: Opening to new railway operators and improving operational efficiency.
  • Skilled Workforce: Strengthening through continuous training and motivation of personnel.

ba88bb27d5ca79649690a5e38c84bccb_MD5

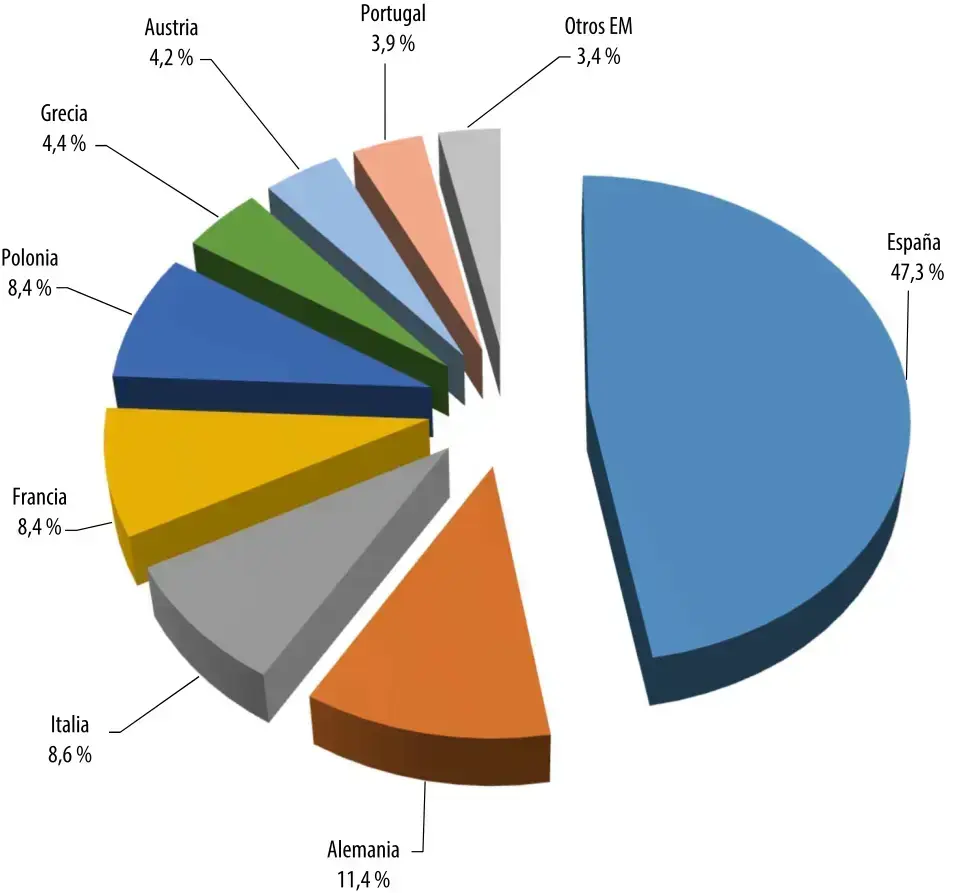

Synopsis of co-financing allocated to high-speed rail by Member State (2000-2017 Source: European Commission.

Chapter III: Spanish Railway Sector

The Railway Sector Law, which arises from the transposition of European Directives into Spanish legislation, mandates that large national European railway companies manage infrastructure and the trains circulating on it independently. The ultimate goal of this legislation is to allow any railway operator to circulate on the network under equal conditions, promoting free competition and improving system efficiency.

According to Spanish regulations derived from the Railway Sector Law, domestic passenger services on the ADIF network could be performed exclusively by RENFE OPERADORA until complete liberalization occurred in 2017. Currently, any operator obtaining the relevant permits can operate international passenger services or freight of any kind. Approximately 40 railway companies hold a license to operate on the ADIF network, including 3 with a European license and 2 enabled but without an active license. 70d04e63bf842595a7ff191e08785c01_MD5 link

Access to Railway Infrastructure

From January 1, 2006, railway companies with a European license have free access to the entire General Interest Railway Network of the State to perform international or national rail freight transport. To exercise this right, they must request the corresponding capacity (path) from ADIF, following established procedures. At the time of capacity allocation, companies must possess the necessary safety certificate to circulate with their rolling stock and driving personnel on the requested route.

Railway Regulation Committee

The Railway Regulation Committee constitutes the main regulatory body of the Spanish railway sector. It is a collegiate body attached to the State Secretariat for Infrastructure and Planning of the Ministry of Development, composed of a president and four members (officials of the Ministry of Development appointed by the Minister) and a secretary designated by the committee itself. Royal Decree 2387/2004 establishes the duration of the mandate and conditions of the members.

Its objectives, functions, and competencies include:

  • Safeguarding the plurality of railway supply in the Spanish market
  • Guaranteeing equality for all operators in market access conditions
  • Supervising that charges comply with regulations and are not discriminatory
  • resolving conflicts between ADIF and railway companies regarding the granting and use of safety certificates
  • Applying criteria established in the network statement
  • Supervising capacity allocation procedures
  • Reviewing the amount, structure, and application of tariffs to operators
  • Resolving conflicts between railway companies regarding actions pursuing discriminatory treatment in infrastructure access
  • Interpreting clauses of licenses and authorizations for public service obligations
  • Reporting to and advising the Minister of Development and regional authorities on railway matters

Division of RENFE: ADIF and Renfe Operadora

The division of RENFE became effective on January 1, 2005, separating management into two business entities:

  • ADIF (Administrator of Railway Infrastructures): Owner of the infrastructure and in charge of its management, providing its services to any railway operator requesting them under equal conditions.

  • Renfe Operadora: Owner of the trains and in charge of their circulation, working in competition with other railway companies in the open market.

This division had particular characteristics derived from the Spanish context:

  • Ticket sales at stations are the competence of ADIF, contrary to what happens in other infrastructure managers (AENA, bus stations), where each company sells its own tickets.
  • Exclusively Commuter (Cercanías) stations are owned by ADIF but managed by Renfe Operadora, a situation possible because Commuter networks are not targets for free competition.
  • In similar operation with FEVE: On December 31, 2012, ADIF assumed the management of all narrow-gauge infrastructure not transferred to Autonomous Communities (ADIF-RAM).

ADIF - Administrator of Railway Infrastructure

ADIF is a public business entity dependent on the Ministry of Development whose objective is the construction of new railway lines and the integral management of their operation. ADIF inherited the infrastructure of the extinct RENFE (National Network of Spanish Railways), of FEVE, and also assumed the functions of GIF (Manager of Railway Infrastructures).

The ADIF network comprises:

  • All lines that belonged to RENFE
  • All lines belonging to FEVE
  • All lines not transferred to Autonomous Communities or private sidings

With exceptions in certain regional areas:

  • Broad gauge: Barcelona-Valles and Lérida-Puebla de Segur line (belonging to FGC)
  • Standard gauge: operated by FGC
  • Narrow gauge: administered by Catalonia, Basque Country, Valencian Community, and Balearic Islands

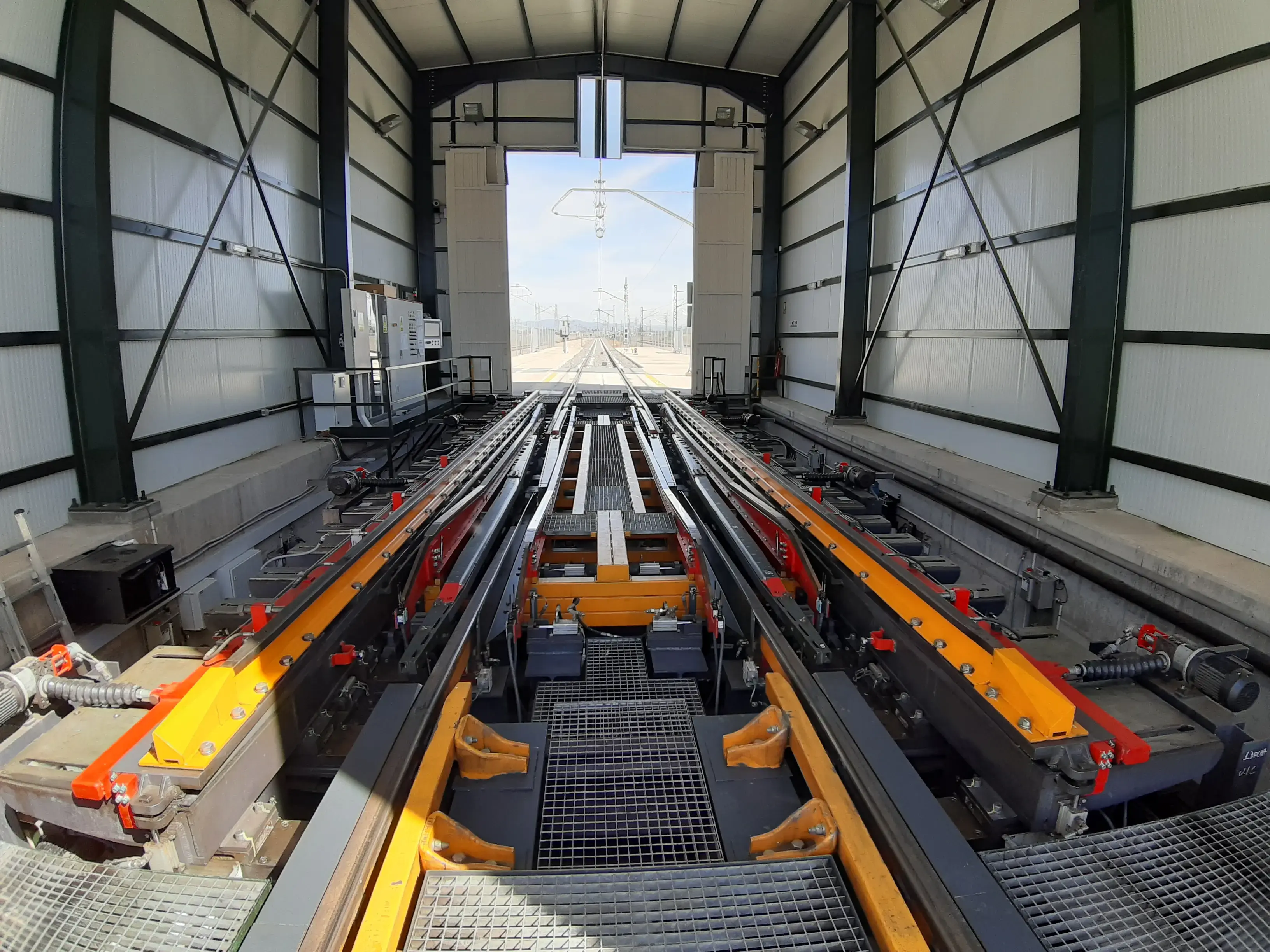

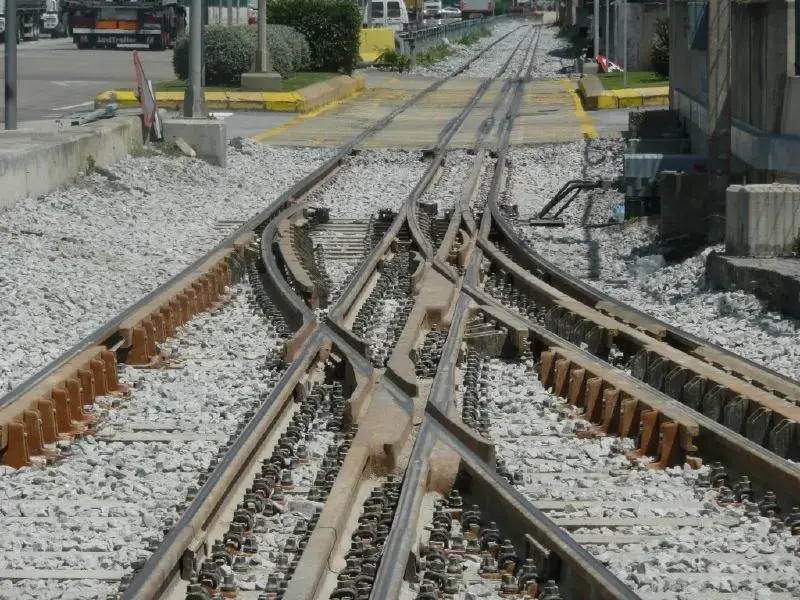

There are 190 km of mixed-gauge track, valid for both gauges through the use of a third rail. At several points where the Iberian and UIC gauge networks meet, there are gauge changers that allow passing from one configuration to another.

a5d0009c7c7e0b23d8516d6e0b7e99e9_MD5 link 7938e7f490593f3aad88671d930ae2e9_MD5 Gauge changer

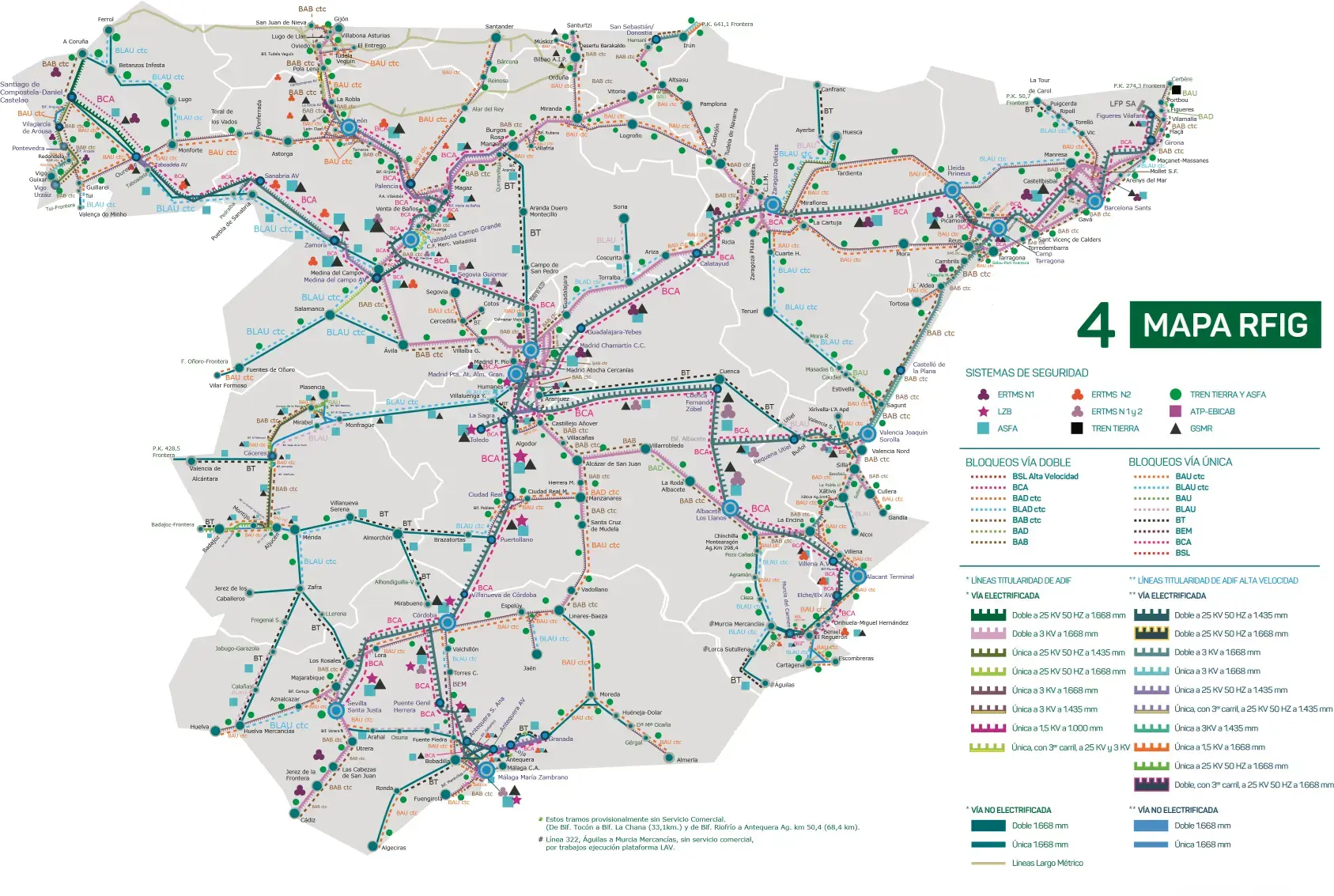

cde211950facfaf64fd70932a3f22cb4_MD5 Map of Spanish railway network of general interest. RFIG.

Main Activities of ADIF

ADIF carries out four main operational activities:

1. Construction of new lines: Since its creation, ADIF has managed the construction of new lines, including those that were in execution at the time of its foundation, by assignment from the Ministry of Development. This function covers projects of high technical complexity and budgetary magnitude.

2. Maintenance and management of existing lines: ADIF carries out all maintenance and management tasks for its lines with its own personnel, both in periodic maintenance and incident resolution. It also maintains and manages auxiliary facilities such as stations, electrical substations, and freight terminals.

3. Traffic management and capacity allocation: ADIF has divided Spain into 6 zones for traffic control, each dependent on delegations framed in the Executive Directorate of Circulation: León, Miranda de Ebro, Barcelona, Madrid, Valencia, and Seville. Traffic control centers are heirs to systems installed by RENFE, nowadays modernized. Not all Traffic Control Centers are necessarily located in a delegation: for example, the Madrid-Zaragoza-Barcelona-French Border High Speed line is controlled from Zaragoza.

4. Research and Development (R&D): The Railway Technology Center (CTF) located in the Technology Park of Andalusia in Malaga constitutes one of the main European research centers on the railway sector. It has signed agreements with more than thirty national and international companies. This center coordinates the rest of ADIF’s R&D infrastructure in Spain.

General Interest Railway Network (RFIG)

With the restructuring of RENFE, the General Interest Railway Network was created, which brings together those lines that are essential to maintain railway service in Spain. Lines belonging to the RFIG must be administered by the central state and cannot be transferred to smaller entities. The inclusion and exclusion of lines in the RFIG is decided by the Ministry of Development, following a report from the affected autonomous communities. Currently, the RFIG consists of all lines of ADIF and those administered by the Port Authority.

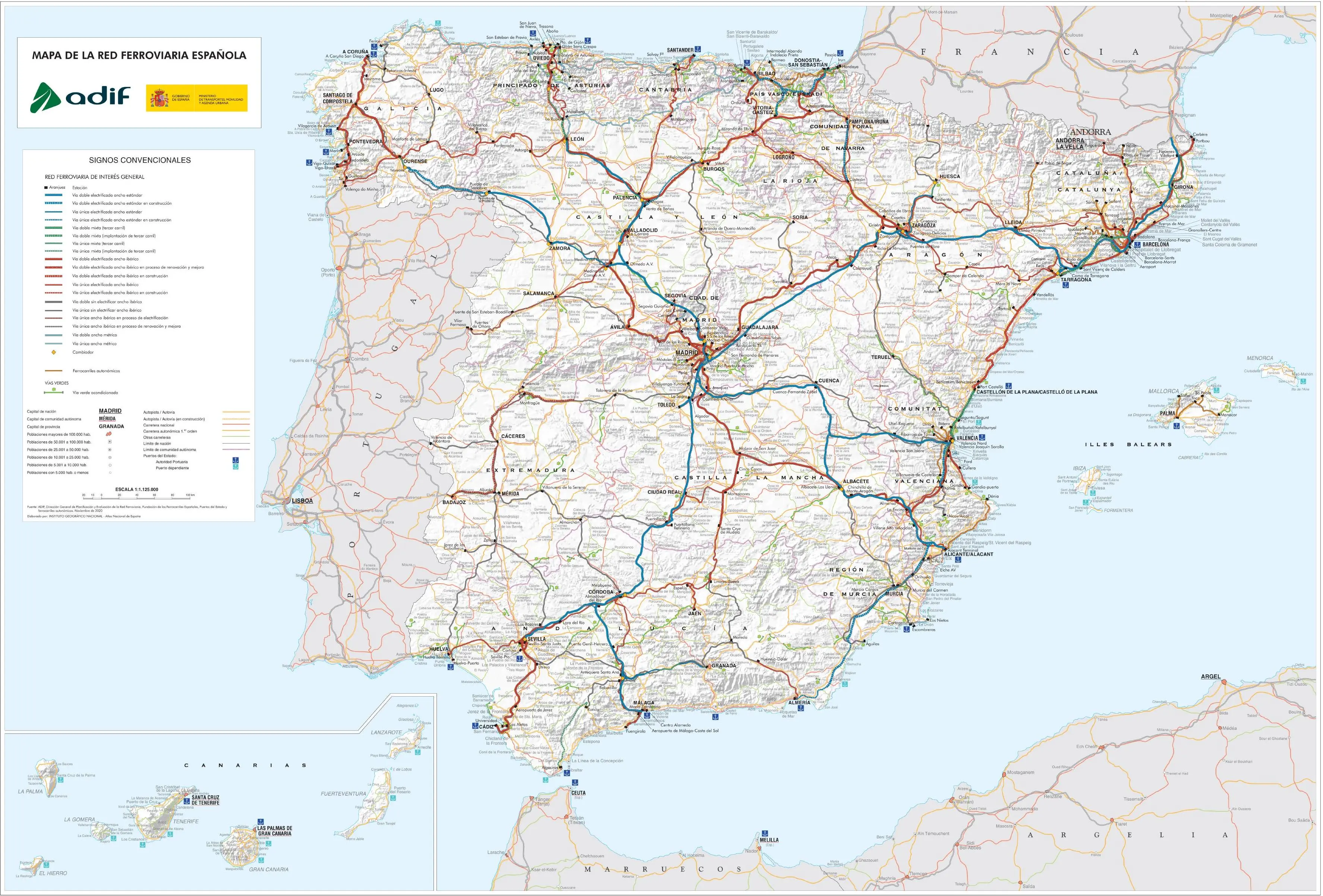

87d9be3d627c3bb87e4da3531f16ba2c_MD5 Map of Spanish railway network. RFIG.

ADIF Rolling Stock

The rolling stock circulating on the ADIF network belongs to each of the railway operators exploiting it. In addition, ADIF has several own vehicles necessary for maintenance and testing tasks of its lines. Among ADIF trains are all kinds of draisines, herbicide trains, workshop trains, etc. The most prominent are the Seneca and Talgo XXI laboratory trains, which perform dynamic and geometric track and catenary auscultation tasks, as well as checking and supervising signaling and communication systems of all types of lines, including high-speed lines.

59c366998998823f789278859a7799c5_MD5 6e42ff407e623cd61405c60b9d6d56fb_MD5

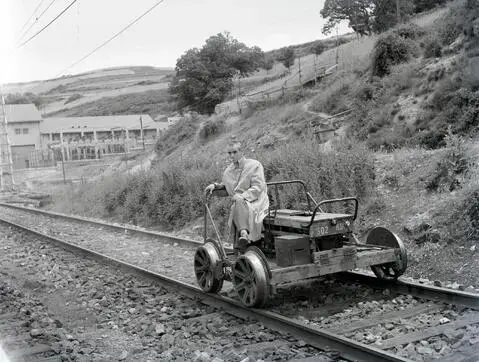

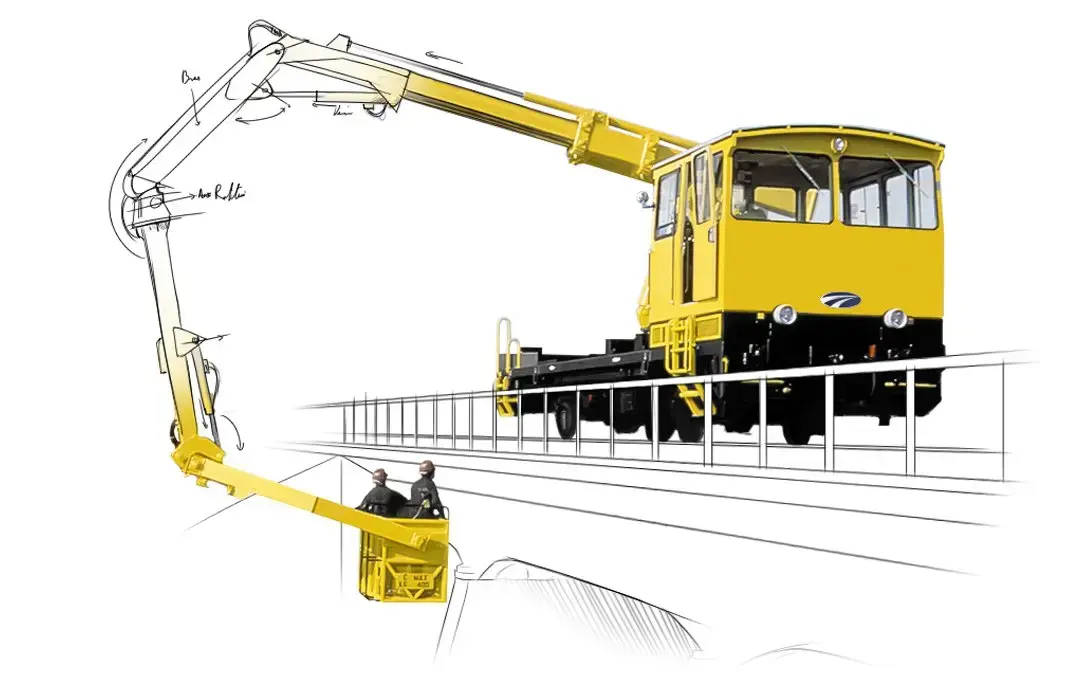

Track inspection draisines. link1, link2

9c3cc2cc9279774389c7f0550a1c3087_MD5 05266d73127b0fa09ad26eb03f749351_MD5

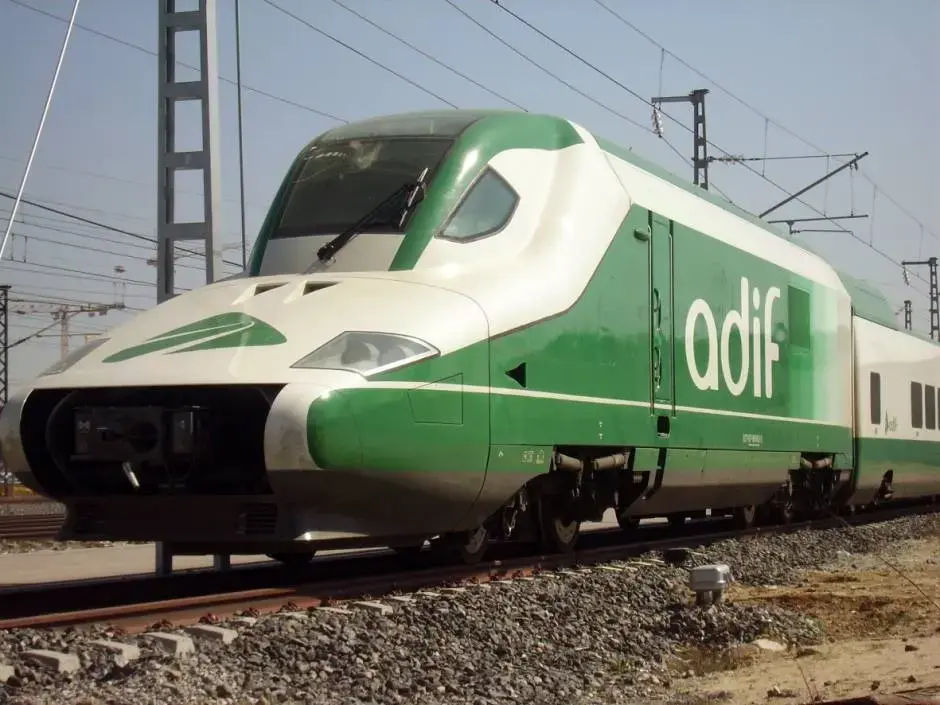

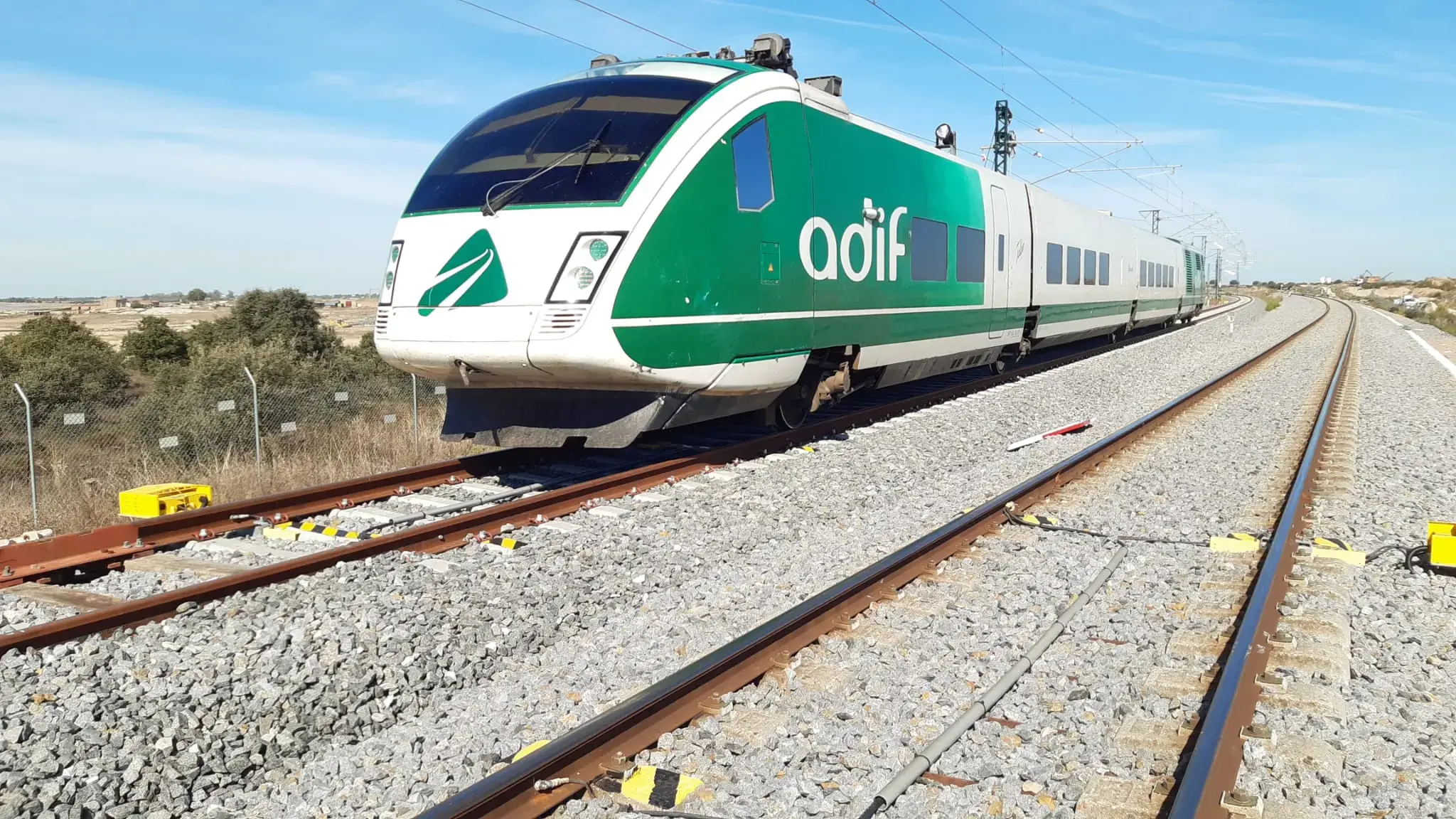

Seneca and Talgo XXI laboratory trains

Renfe Operadora

Renfe Operadora constitutes the main railway operator in Spain. It is the only passenger operator in the Spanish railway sector on the General Interest Network and one of the freight operators. It is configured as a public business entity dependent on the Ministry of Development.

Originally, the railway operator inherited the management model of the Business Units (UN) of the former RENFE, taking charge of those that purely affected the operation of transport services: Commuter (Cercanías), Regional, Long Distance, High Speed, Freight, and Integral Train Maintenance. In January 2006, Renfe Operadora underwent a major internal restructuring, reducing operational areas to the current four:

  • General Directorate of Public Commuter and Medium Distance Services
  • General Directorate of Long Distance Services
  • General Directorate of Freight and Logistics Services
  • General Directorate of Manufacturing and Maintenance

Typology of Railway Services

The spectrum of services operated by Renfe Operadora comprises four fundamental categories:

1. Long Distance: These are non-subsidized services, which generally include great onboard amenities such as cafeteria, preferred class, at-seat catering, or movie broadcasting. The name of each service normally indicates the amenities and type of train, although sometimes there are differences within services with the same name.

High-speed services:

  • AVE: Up to 310 km/h, circulate on HS lines from origin to destination
  • Alvia: Up to 250 km/h, circulate on HS and conventional lines with gauge change systems
  • Altaria: Up to 200 km/h, Talgo hauled by locomotive, can partially circulate on HS lines

Conventional day services (without gauge change systems, up to 200 km/h):

  • Euromed: Service established to take advantage of characteristics of the Mediterranean Corridor
  • Talgo: Talgo composition hauled by locomotive

Night services (partial circulation on HS lines, up to 200 km/h):

  • Trenhotel: Formed by night Talgo composition including restaurant car
  • Estrella: Composed of conventional trains with couchette cars

2. Medium Distance: Performed on lines that can receive subsidies, both particularly to each line (generally by autonomous governments) and globally (through agreement with the state government known as program contracts). All services have similar amenities, with single class without onboard cafeteria and possibility of using bicycles.

There is a High Speed and Medium Distance service called AVANT, capable of circulating up to 250 km/h with amenities similar to other Medium Distance trains, linking nearby cities.

Included services:

  • Regional Service
  • Regional Express Service (fewer stops)
  • Intercity (for travel between nearby cities or as Long Distance service)

3. Commuter (Cercanías): Composed of suburban railway services circulating inside large metropolitan areas, through high capacity and frequency lines. The lines and stations through which Renfe Commuter trains circulate belong to ADIF. Civis Commuter trains are a Renfe Commuter service operating in some commuter nuclei; they are semi-direct trains that stop at some stations but not all.

4. Narrow Gauge: Renfe also operates an important network of narrow-gauge services, which it received from FEVE. The most common narrow-gauge services are proximity (commuter and regional) and freight.

1ea5e57f4bc3763d9b3ed853434116b6_MD5

Fare Structure

Renfe Operadora, like most railway companies, uses a general fare system in which each journey between two stations on a certain type of train has a fixed general fare established, on which several discounts are provided.

The general fare in the case of Long Distance services is established by the operator for each route, penalizing journeys between nearby cities and favoring journeys between the ends of the line.

In Medium Distance, the general fare is kilometric, depending directly on the distance traveled.

Applicable discounts are of two types:

  1. Fixed discounts for certain collectives (large families, children, round trip)
  2. Promotional discounts: Originally had a fixed value, while currently the discount offered is very variable, giving rise to a wide variety of prices.

With this variable discount system, the intention is to progressively introduce a model where each train has a different price, varying according to its occupancy, similar to what airlines do.

Financing of Services

Since 1954, and after the extinction of RENFE and the creation of Renfe Operadora, the state covered the deficit produced by exploiting loss-making lines. Since 2010, and due to European regulations, it is not possible to subsidize complete railway transport, but only lines that perform a public service.

Since then, the Long Distance section is maintained exclusively through ticket sales revenues, while Medium Distance and Commuter lines maintain subsidies covering their possible losses. Occasionally, the road transport employers’ association has denounced the possible unfair competition caused by these types of subsidies.

In June 2012, after the approval of Royal Decree-Law 22/2012 of July 20, the Ministry of Development announced the elimination of 52 regional medium distance lines, some of these being replaced by bus lines.

Chapter IV: Reform and Modernization of the British Railway Sector

The railway network of Great Britain, historically recognized as the cradle of the modern railway, is currently undergoing its deepest restructuring process since the privatization era initiated in the 1990s. This transition period, defined by the shift from a fragmented franchise model to a unified public entity called Great British Railways (GBR), seeks to correct systemic inefficiencies that have affected reliability, cost, and user experience over the last thirty years. The implementation of the Williams-Shapps Plan for Rail and the subsequent Passenger Railway Services (Public Ownership) Act 2024 constitute the legal and operational framework guiding this paradigm shift, where the State resumes strategic direction of operations and infrastructure under the concept of a “single guiding mind”.

Historical Evolution and the Decline of the Franchise Model

The British railway system is fundamentally governed by the Railways Act 1993, which dismantled the vertical integration of British Rail to introduce competition into the market. Under this scheme, infrastructure was separated from train operation, delegating the latter to private companies (Train Operating Companies or TOCs) through a complex franchise system. While this model coincided with significant growth in passenger numbers in the two decades prior to the pandemic, the structure proved to be excessively rigid and prone to fragmentation.

The crisis of the franchises became evident in May 2018, when the collapse of new timetable implementation in much of northern England and on Thames routes revealed a total lack of centralized coordination. This event, added to the financial failure of the East Coast franchise, motivated the creation of the Williams Rail Review, led by Keith Williams, whose objective was to recommend a new organizational framework prioritizing the needs of passengers and freight users over contractual disputes.

The COVID-19 pandemic accelerated this reform process terminally for the franchise system. In March 2020, passenger demand collapsed almost completely, forcing the Government to intervene with emergency contracts to prevent system paralysis, at an approximate cost of £12 billion. Before the health crisis, daily commuters represented 47% of passengers and business trips 10%, profiles that have experienced permanent changes due to the consolidation of teleworking. In 2024 and 2025, although the number of trips has recovered to levels close to 2019 (1.728 billion trips), fare revenues remain 12% below pre-pandemic levels, underscoring the need for more efficient and centralized management.

The transition towards the new model is supported by a legislative architecture seeking to reverse fragmentation without falling into bureaucratic nationalization in the style of the mid-20th century. The Williams-Shapps Plan establishes that GBR is not simply an expanded version of Network Rail, but a completely new organization with a customer-oriented culture.

The Passenger Railway Services (Public Ownership) Act 2024, which received royal assent in November of that year, allows the Government to bring back most passenger services to public ownership as existing contracts expire. This process is carried out gradually to avoid paying excessive compensation to private operators.

Legislative / Operational Milestone Date Strategic Impact
Railways Act 1993 November 1993 Creation of the franchise system and separation of infrastructure.
Williams Review September 2018 Start of the reform process following the 2018 timetable collapse.
Williams-Shapps Plan May 2021 Publication of the White Paper for the creation of GBR.
Public Ownership Act November 2024 Legal basis for the renationalization of operators.
Railways Bill November 2025 Introduction of the legislative framework to formally establish GBR.

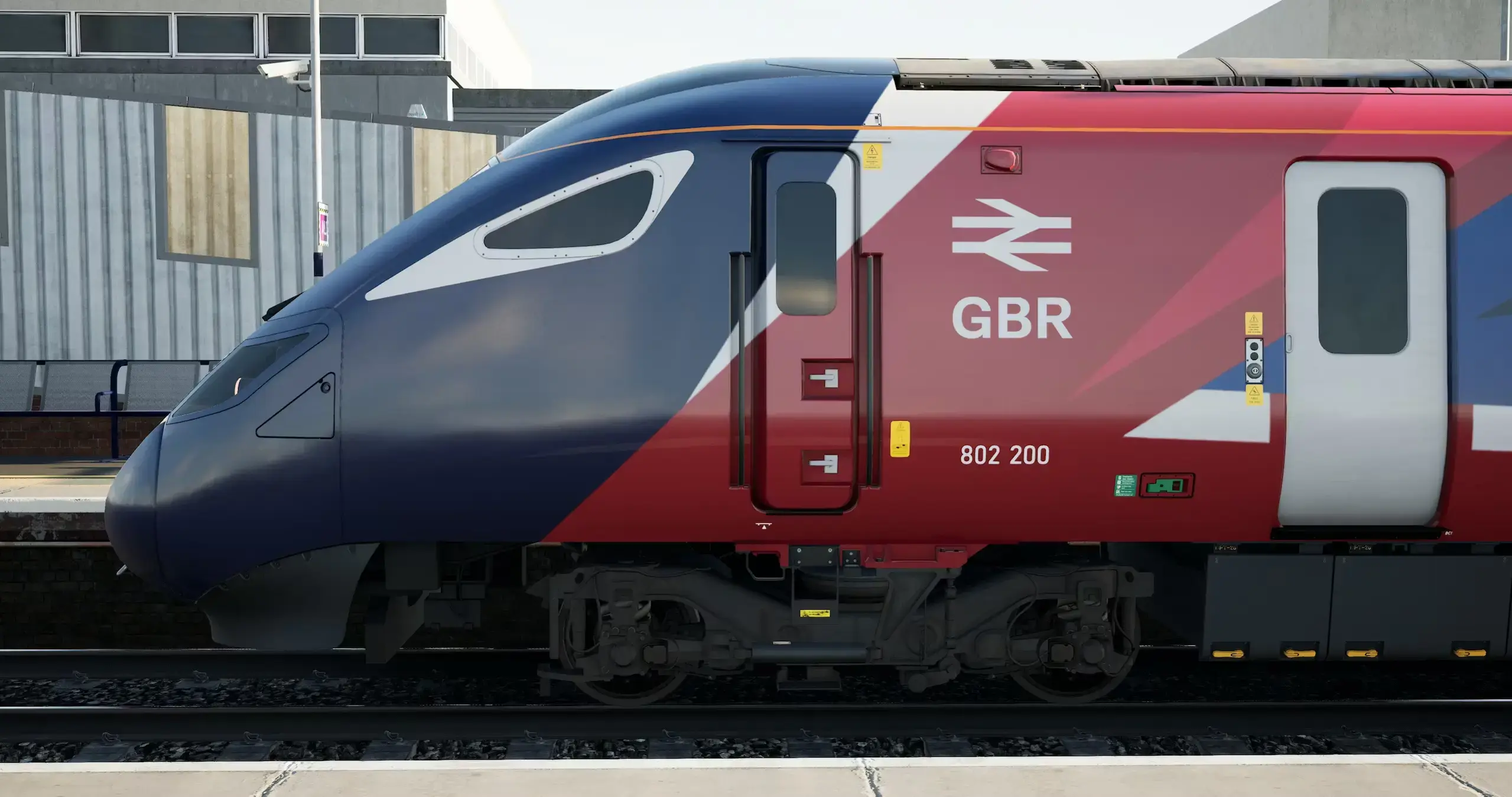

Architecture of Great British Railways

Great British Railways (GBR) is born with the mandate to be the sole body responsible for planning, infrastructure, revenue collection, and fare setting. By bringing these functions together, it seeks to eliminate the “blame game” culture between train companies and the infrastructure manager, incentivizing a shared vision of system success.

Functions and Objectives of GBR

GBR’s structure has been designed under eight fundamental objectives established by the transition team: change sector culture, prioritize customers, make the system easier to use, simplify the sector to reduce costs, and grow passenger and freight demand. A key innovation is that GBR will own the infrastructure but also directly receive fare revenues, subcontracting private companies to operate trains through “Passenger Service Contracts” instead of the old franchises.

This model resembles the operational success of Transport for London (TfL), where the private sector competes for contracts to operate services according to strictly defined timetables and quality standards by the public authority. Private operators will no longer assume revenue risk—which now falls on the State—but will focus exclusively on operational excellence, punctuality, and customer satisfaction, receiving payments based on their performance.

44f1a9f7b5161fea6e74126711c62721_MD5

Decentralization and Regional Structure

To ensure decisions are made close to the communities served, GBR will be organized into regional divisions. This will allow new partnerships with local governments and regional authorities, giving local leaders a greater voice in defining services in their areas. In the case of Scotland and Wales, the bill seeks to formalize a statutory role for their governments, ensuring national strategies are integrated into GBR planning.

Operational Region (Network Rail / GBR) Strategic Focus Citation
Scotland Integrated management with Transport Scotland and nationalized services (ScotRail).
Wales Collaboration on border routes and management of Core Valley Lines.
London and South East Integration with TfL and management of high passenger density.
North and Midlands Focus on regional connectivity and support for projects like HS2.

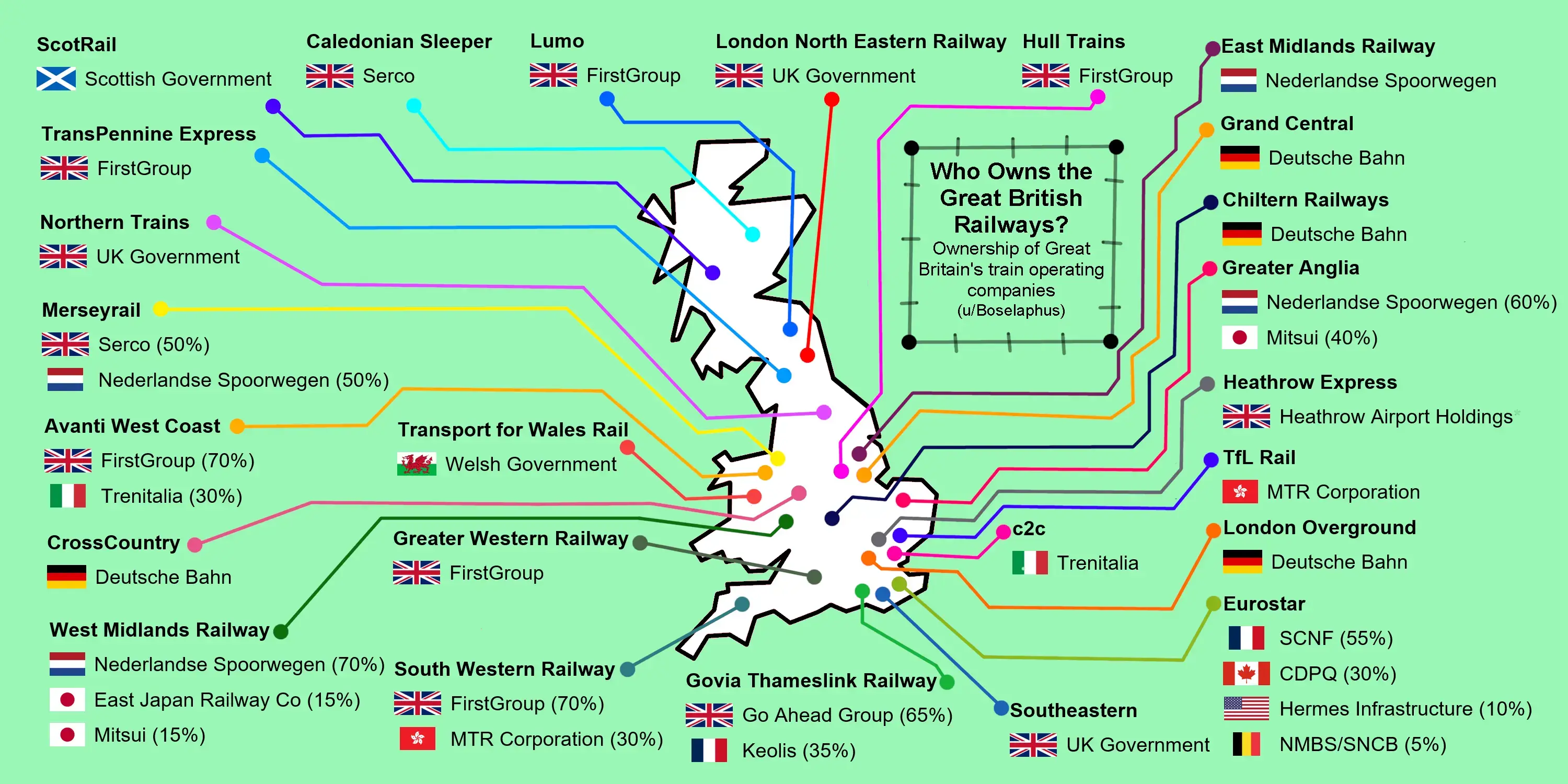

Timeline of the Nationalization Program

The transition to public ownership is not a single event, but a series of scheduled transfers expected to conclude in 2027. The Government uses the entity DfT Operator Limited (DFTO) as an umbrella to manage these services before GBR is fully operational.

d9453120828b3570e3867c662312da0a_MD5

Transfer of Operators (2025-2027)

The process formally began in May 2025. Operators are transferred as their contracts expire or reach contractual break points, minimizing financial impact for the taxpayer.

  • South Western Railway (SWR): Was the first operator to transfer under the new legislation on May 25, 2025.
  • c2c: Services connecting London with Essex passed to public control on July 20, 2025. In its new phase, improvements in platform capacity at Basildon to allow 12-car trains have been announced.
  • Greater Anglia: Transferred on October 12, 2025. Under public control, massive introduction of contactless payments and construction of innovative modular stations in Wickford is planned.
  • Upcoming Transfers: West Midlands Trains is scheduled for February 1, 2026, followed by Govia Thameslink Railway on May 31, 2026. Long-distance operators like Avanti West Coast and CrossCountry are expected to integrate around 2027.

Despite this trend towards nationalization, “Open Access” operators like Lumo, Grand Central, and Hull Trains maintain their commercial role. The Government has expressed that these operators add value and capacity where public services do not reach, fostering innovation and competition on specific routes. However, the Office of Rail and Road (ORR) applies strict “not revenue abstractive” tests to ensure these private services do not financially harm the main public operator.

Infrastructure Management: Network Rail

Network Rail remains, until its absorption by GBR, the infrastructure manager responsible for 20,000 miles of track and thousands of stations, bridges, and tunnels. As a non-departmental public body, its focus is safety and efficiency in daily network operation.

386c200ac3730fd027e2778eb4dd8362_MD5

Infrastructure Monitoring Fleet

A critical component for service reliability is the capacity for proactive asset monitoring. Network Rail operates a specialized fleet known as the “Yellow Fleet”. The flagship of this fleet is the New Measurement Train (NMT), nicknamed the “Flying Banana” for its distinctive yellow livery.

Machine / Vehicle Main Function Technical Specifications
NMT (New Measurement Train) High-speed track monitoring Laser sensors and high-resolution cameras at 125 mph.
Stoneblower Track levelling and alignment Pneumatic injection of 20mm stone under sleepers.
Tamper Ballast consolidation Mechanical tools to position ballast and level the track.
Ballast Cleaning System (BCS) Ballast renewal 800-meter train that cleans or replaces ballast at night.
Milling Train Rail smoothing Removal of surface defects to extend rail life.

The NMT is a converted Intercity 125 that travels 115,000 miles a year, capturing 10TB of image data every 440 miles through track pattern recognition systems (PLPR). This technology allows identifying defects before they become safety failures or cause operational delays. However, Network Rail has initiated a program to replace this aging fleet by 2027 with hybrid methods including drones, robots, and satellites, seeking greater predictability and lower maintenance costs.

Track Maintenance Methods

British railway engineering has developed specific methods to maintain track geometry. While traditional “tamping” moves existing ballast, “stoneblowing” restores level by injecting additional small-sized stone, minimizing disturbance to the already compacted base. Studies indicate that “stoneblowing” offers longer-lasting results, reducing the necessary frequency of interventions and, therefore, the total infrastructure ownership cost. However, “tamping” remains essential for consolidating ballast after complete renewal works.

British Railway Sector Economics

Financial sustainability is the biggest challenge of the reform. In the 2024-2025 financial year, total industry revenues were £25.9 billion, but operating expenses amounted to £26 billion. The difference, along with capital investments, is covered by the State.

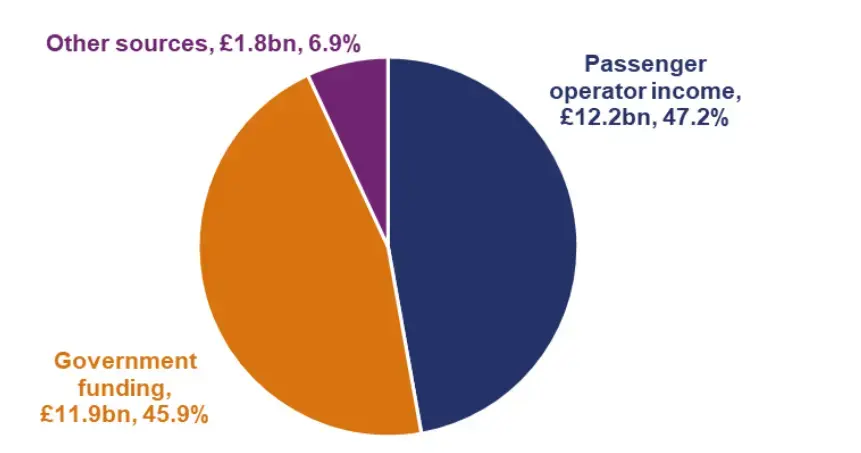

Revenue and Subsidy Structure

The Government contributed £11.9 billion for daily railway operation in 2024/25, representing 46% of total operating revenues. Although fare revenues grew by 8% to £11.5 billion, the system remains heavily dependent on the taxpayer due to rising personnel and maintenance costs.

Revenue Source (2024-2025) Amount (Billions £) Year-on-Year Variation
Fare Revenue 11.5 +8%
Government Operating Subsidy 11.9 -7%
Investment in HS2 7.1 -5%
Private Investment 0.756 +27%

e3a57b4acf6503f10e869e3b4fa4ba35_MD5 Regional disparity in subsidy is notable. Passengers in Scotland receive support of 34 pence per passenger-kilometre, and in Wales the figure reaches 45 pence, compared with 16 pence in the South and East of England, where higher population density allows greater cost recovery through fares.

3b7bb3c6976c5089a9522543d30b9252_MD5

Fare Regulation and Inflation

The UK fare system is divided into regulated and unregulated fares. Regulated fares (including season tickets and off-peak tickets on main routes) represent approximately 45% of the total, and their increase is capped by the Government. Traditionally, this cap has been linked to the Retail Prices Index (RPI) of July of the previous year.

For 2025, the Government set an increase cap of 4.6%, based on July 2024 RPI (3.6%) plus an additional percentage point. However, for 2026, with July 2025 RPI registered at 4.8%, projections indicate increases of up to 5.8%, pressuring user purchasing power and complicating GBR’s strategy to attract more passengers post-pandemic.

Rolling Stock and Operating Lease

Unlike many national systems, train operators in Great Britain do not usually own their vehicles. 87% of trains belong to three large rolling stock leasing companies (ROSCOs): Angel Trains, Eversholt Rail, and Porterbrook.

The ROSCO Model

These companies were created during the 1994 privatization and have maintained a dominant position. Operators lease trains through lease contracts representing 26% of their total expenses. The model has been criticized for its high profit margins and dividend payments to international investors, while long-term investment risk is often indirectly assumed by the State. In 2020, the three main ROSCOs paid dividends worth £950 million.

Main ROSCO Owner / Recent Context Financial Performance
Angel Trains International investment funds. Historically high dividends.
Eversholt Rail Acquired by Beacon Rail in 2025. Focus on long-term leasing.
Porterbrook Institutional investors; acquired 404 Corelink trains. Net profit margin ~19%.

Rolling Stock Financing Alternatives

Given the fiscal burden it would entail for the State to buy the national fleet (valued at over £10 billion), the Government is exploring accession to Eurofima, a non-profit supranational financial entity. Eurofima offers financing 5-7% cheaper than private sources, which could allow GBR to acquire new trains at significantly lower cost without increasing direct public debt. Negotiations with Eurofima have been a priority for the Department for Transport during 2024 and 2025.

High Speed Projects in the UK

High-speed infrastructure represents the UK’s long-term growth bet, divided into two projects with distinct operational realities.

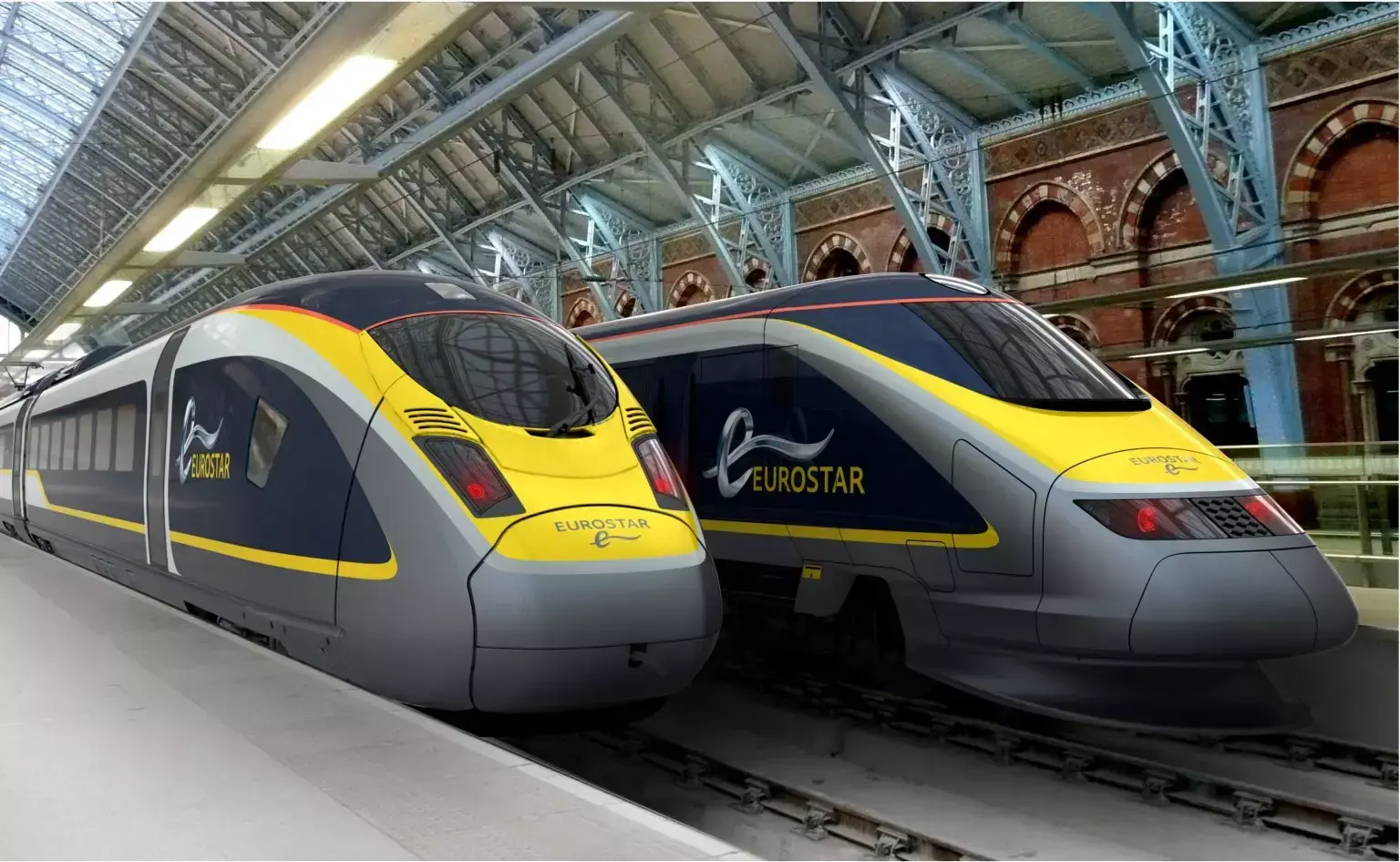

High Speed 1 (HS1)

HS1 connects London St Pancras with the Channel Tunnel. It is mature infrastructure operated by HS1 Ltd under a concession extending until 2040. Recently, the company commercially rebranded as “London St. Pancras Highspeed” to boost modal shift from air to rail on international routes. However, asset maturity implies renewal costs are starting to rise, requiring careful management of access charges paid by operators like Eurostar and Southeastern.

368668ecfd3a50c87d7f5fcc1f5c26bb_MD5 link

High Speed 2 (HS2)

HS2 is Europe’s largest railway infrastructure project, designed to relieve congestion on the West Coast Main Line (WCML). After years of cost increases and scope changes, the project was resized in 2023 to focus on the route between London Euston and Birmingham. In 2025, the project entered a “reset” phase under the direction of Mark Wild to synchronize civil engineering and systems integration.

HS2 Component Progress Status (January 2026) Technical Details
Tunnels 85% excavation completed. Longest tunnel already finished.
Viaducts 4% finished (2 of 52). Landscape connection in 9 miles.
Bridges 11% finished (19 of 169). Sequenced construction.
Test Area Prioritization of 50 miles. Between Washwood Heath and Wendover.

HS2’s current strategy prioritizes a 50-mile test area to install track, power, and signaling before the rest of the route, allowing testing of new high-speed trains while heavy construction continues on more complex sections. The main benefit of HS2 is not just speed (360 km/h), but releasing capacity on the conventional network for more freight and commuter trains. It is estimated that HS2 will replace most non-stop long-distance services on the WCML, allowing up to 10 new commuter services per hour at London Euston. 0174fe7fa8a8635c7f67e226231eb65d_MD5 link

Territorial Governance and Decentralization

Railway reform seeks to balance national direction with regional needs. The current system presents very unequal levels of autonomy among the nations comprising Great Britain.

Scotland: National Integration Model

Scotland possesses the most advanced management of its railways. Transport Scotland has full responsibility for ScotRail and Caledonian Sleeper, directly financing infrastructure within its borders. This model has served as inspiration for some aspects of GBR, demonstrating the benefits of strategic alignment between national government transport objectives and railway operation.

Wales: Tensions over Infrastructural Governance

In Wales, the situation is more complex. While the Welsh Government manages Transport for Wales Rail and owns the Core Valley Lines, the rest of the infrastructure remains owned by Network Rail and depends on Westminster funding. This has generated political tensions, with Welsh leaders claiming full devolution of control and funding, arguing that Wales receives proportionally less investment than England or Scotland.

Regions of England and Local Authorities

In England, the GBR bill foresees flexible partnerships with Mayoral Combined Authorities (MCAs), such as those of Manchester, West Midlands, or London (GLA). These partnerships will allow greater integration of fares (like the Oyster/contactless system) and schedules between rail and other local transport modes, following the successful precedent of TfL.

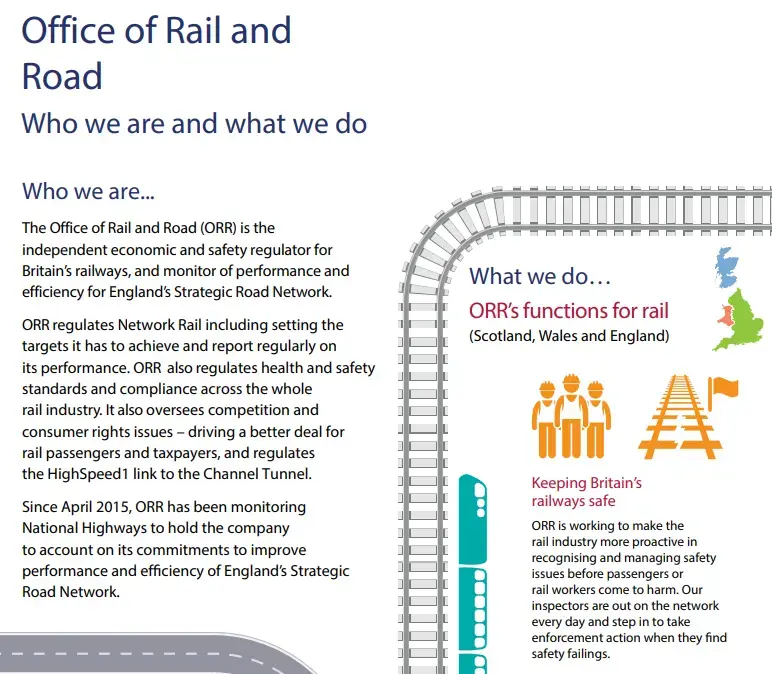

Independent Regulation: The Office of Rail and Road

The Office of Rail and Road (ORR) acts as the independent safety and economic regulator. Its function is to ensure operators comply with health and safety legislation and that the market is competitive and fair.

73e8925bad54ea539dac57f172d6ec92_MD5

Evolution of Regulatory Functions with GBR

With the creation of GBR, the ORR’s role will change significantly. Instead of regulating a fragmented market of multiple franchises, the ORR will move to oversee a monolithic public entity. Its new responsibilities will include:

  • Monitoring GBR’s Business Plan: Evaluation of five-year plans to ensure funds are used efficiently.
  • Dispute Resolution: Act as an appeals body for freight and open access operators competing for space on tracks managed by GBR.
  • Safety Oversight: This function remains unchanged, being the authority authorizing the entry into service of new trains and station improvements.

In the current control period (CP7), the ORR has highlighted that Network Rail has achieved efficiency savings higher than predicted, positioning the organization well for the transition to GBR. However, the ORR has warned about the lack of clear direction on where private capital will be incentivized in the future, a crucial factor for modernizing the network without relying exclusively on the public treasury.

Future Perspectives of British Railway Reform

The reform of the railway sector in the United Kingdom represents a bet on simplification and integration versus the competitive fragmentation of the past. The creation of Great British Railways as a single guiding mind promises to end the structural inefficiency of franchises, allowing for more agile and passenger-oriented management.

However, the success of this new model will depend on the State’s ability to manage financial risks associated with post-pandemic revenue decline and inflationary pressure on fares. The coexistence of a dominant public operator with private open access and freight operators will require sophisticated and fair regulation by the ORR to avoid stagnation of innovation.

Technically, modernizing the maintenance fleet and completing key projects like HS2 will be fundamental to offering the reliability users demand. If effective integration between infrastructure and operation is achieved, the British railway could not only recover its central role in national mobility but also lead the transition towards a greener and more efficient transport economy for the 21st century.

Chapter V: Technical and Economic Characteristics of Railway Transport

Energy Economy and Independence of Traction

The technical foundation of the railway originates in the small coefficient of friction existing in steel-on-steel rolling. This coefficient is quantified at three thousandths (0.003), which is equivalent to saying that the effort necessary to move one ton horizontally is 3 kp. In road vehicles, this effort is much higher, revealing the intrinsic technical advantage of the railway. This small tractive effort to tow a load gravitating on a wagon constitutes the fundamental basis on which the modern railway industry was established.

To exemplify this advantage, consider a 900-ton train that we wish to tow at a speed of 72 km/h. The necessary power will be:

\[W = F \cdot v = 900 t \times \frac{3 \text{ kp}}{t} \times \frac{72.000 \text{ m}}{3.600 \text{ s}} = 54.000 \text{ Kpm/s}\]

Given that 1 H.P. = 75 kpm/s, we get: W = 720 H.P.

If the same transport were carried out by road in 90 trucks of 10 t, each truck would require only 8 H.P., an absurd figure considering that a typical car possesses 70 H.P.

In terms of specific energy consumption: the work necessary to transport 1 ton for 1 kilometer by rail is:

\[T = F \cdot s = 3 \text{ kp} \times 1000 \text{ m} = 3000 \text{ kpm} = 2,9 \times 10^4 \text{ J}\]

Considering a combined train efficiency of 20%, the number of kWh necessary will be 0.04 kWh, equivalent to the energy consumed by a 40 W light bulb for one hour.

Sensitivity to Alignment and Gradients

Resistance on a gradient is calculated by:

\[R_i = P \cdot \sin \alpha\]

For small angles, the sine is confused with the tangent:

\[R_i = P \cdot \tan \alpha\]

If we measure the inclination of the gradient in thousandths (i), we have:

\[\tan \alpha = \frac{i}{1000} \quad \text{so} \quad R_i = \frac{P \cdot i}{1000}\]

The effort \(R_i\) in kp, per unit of weight P (in tons) on gradients is equal to i in thousandths. A gradient of 2 thousandths implies 2 kp more tractive effort than on horizontal, which means doubling the effort.

In Spain, due to its mountainous orography, there are numerous gradients of 20 thousandths, a circumstance that demands very powerful locomotives on fast trains. This factor contrasts significantly with French geography, where maximum gradients are 7 thousandths. The crossing of the Pajares pass, on the Cantabrian slope, on the section from Ujo to Busdongo, exemplifies these difficulties: of its 62 km route, 28 km are in tunnels and most of the remainder on a 20 thousandths gradient.

Safety of Railway Transport

The safety of transport by rail is notorious. The most reliable proof is existing statistics that consistently demonstrate the low accident rate per passenger-kilometer compared to other modes of transport.

Regularity and Punctuality

Within the European railway, the regularity achieved by companies is notable, undoubtedly because this medium is not affected by inclement weather. In Europe, a delay greater than 5 minutes affects less than 10% of trains, with the average delay in Belgium being only 30 seconds.

Metros with very busy services (hundreds of trains/day) present average delays of 2 or 3 seconds.

Between September 1990 and July 1991, there were 40,000 circulations on the Atlantic TGV network, of which only 3.9% had a delay equal to or greater than 15 minutes; only 8 trains arrived with delays greater than 4 hours.

In RENFE, 92-93% daily punctuality is recorded. Trains accumulating the most delays are medium distance ones.

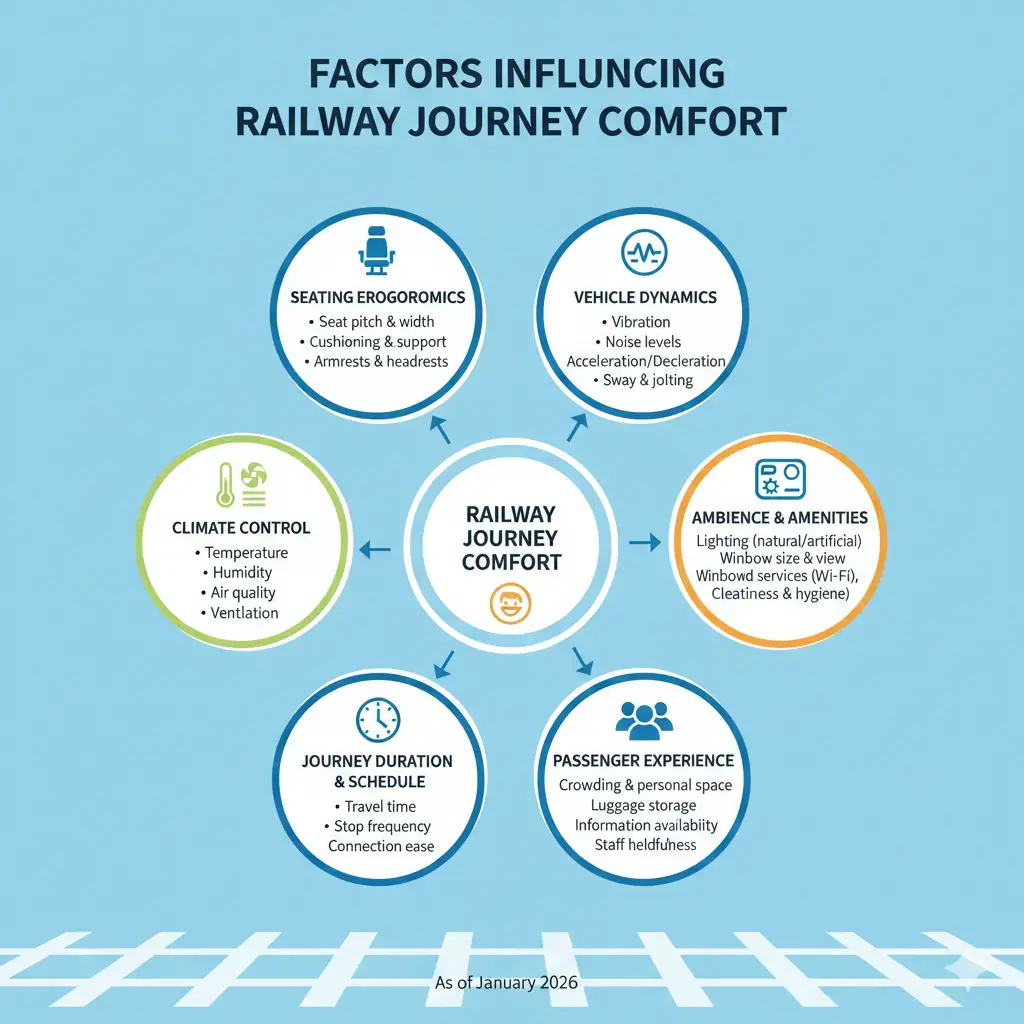

Comfort and Travel Conditions

Regarding vehicles, the following has been achieved:

  • Refinement of running gear (thanks to bogies and advanced suspension systems)
  • Automatic heating and ventilation
  • Air conditioning
  • Quality lighting
  • Effective soundproofing
  • Ambient music
  • Reclining and ergonomic seats
  • Limitation of accelerations for passenger comfort
  • Sleeping cars, lounge-bar, restaurant, entertainment services

From the point of view of track infrastructure:

  • Continuous rail (welded rail) eliminating discontinuities
  • Large radius curves with smooth transition agreements
  • Switches with special points and small angle crossings
  • Suppression of level crossings (hard points due to absence of ballast)

Comfort flourishes with the modernization of stations equipped with all kinds of services, electronic ticket sales, and real-time information systems.

0be48888ef709b8d5203ea370c5a107b_MD5

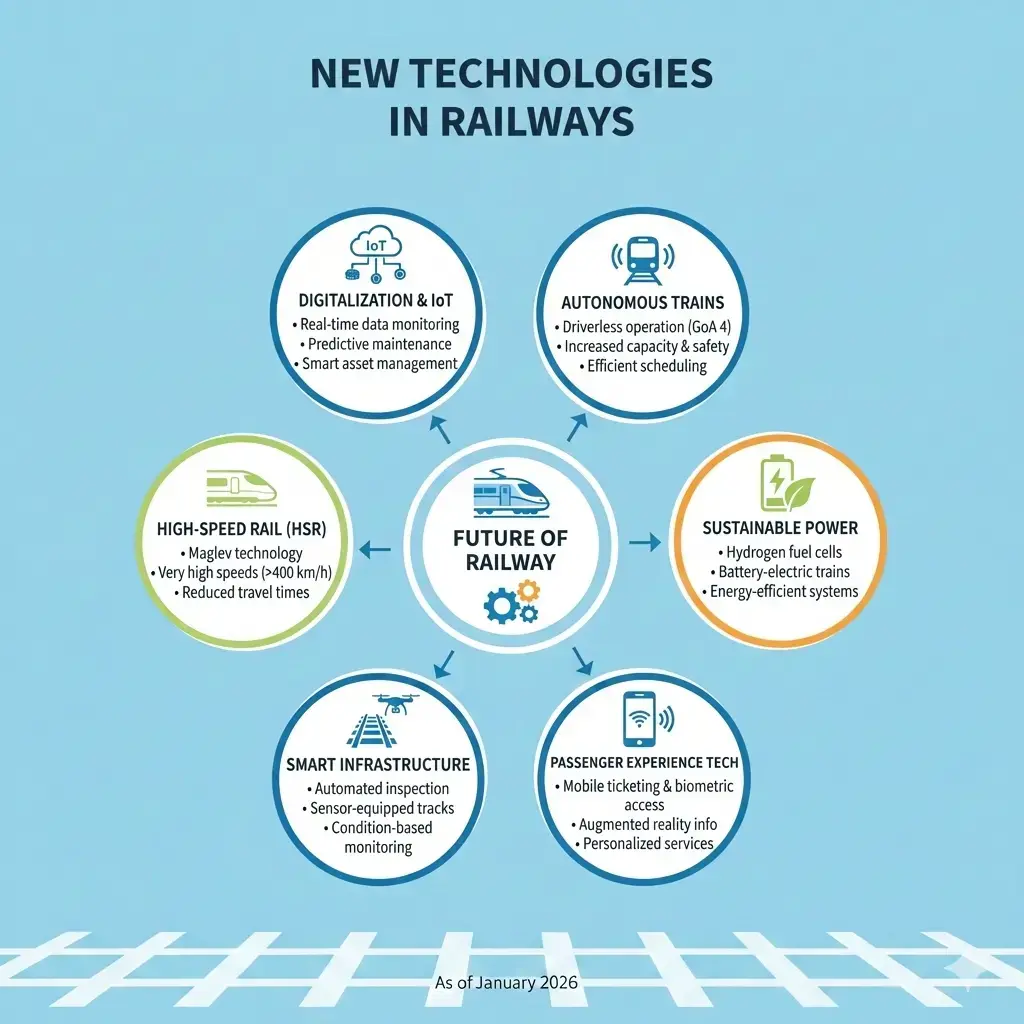

New Technologies in Railways

The fact that the railway constitutes a kinematic system guided by a conductive element with a single degree of freedom makes it especially capable of benefiting from cybernetic command and control techniques.

In addition to being able to apply computers to its administration and management, the railway employs cybernetics for:

  • Automatic train operation
  • Traffic control and operation of classification yards
  • Ticket sales and seat reservation
  • Centralized freight traffic management
  • Infrastructure monitoring

c91e129706b3e0294577b6deee5a295d_MD5

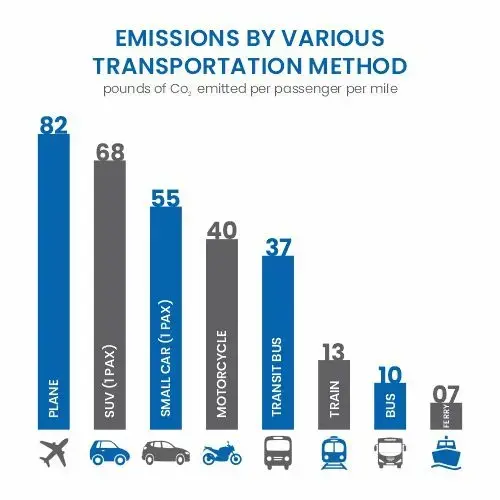

Environmental Impact of the Railway

The railway presents significant environmental advantages compared to other modes of transport, including lower energy consumption per passenger-kilometer and reduction of polluting emissions.

bf91d6c458efc4339959dfc919469f57_MD5

Carbon calculator

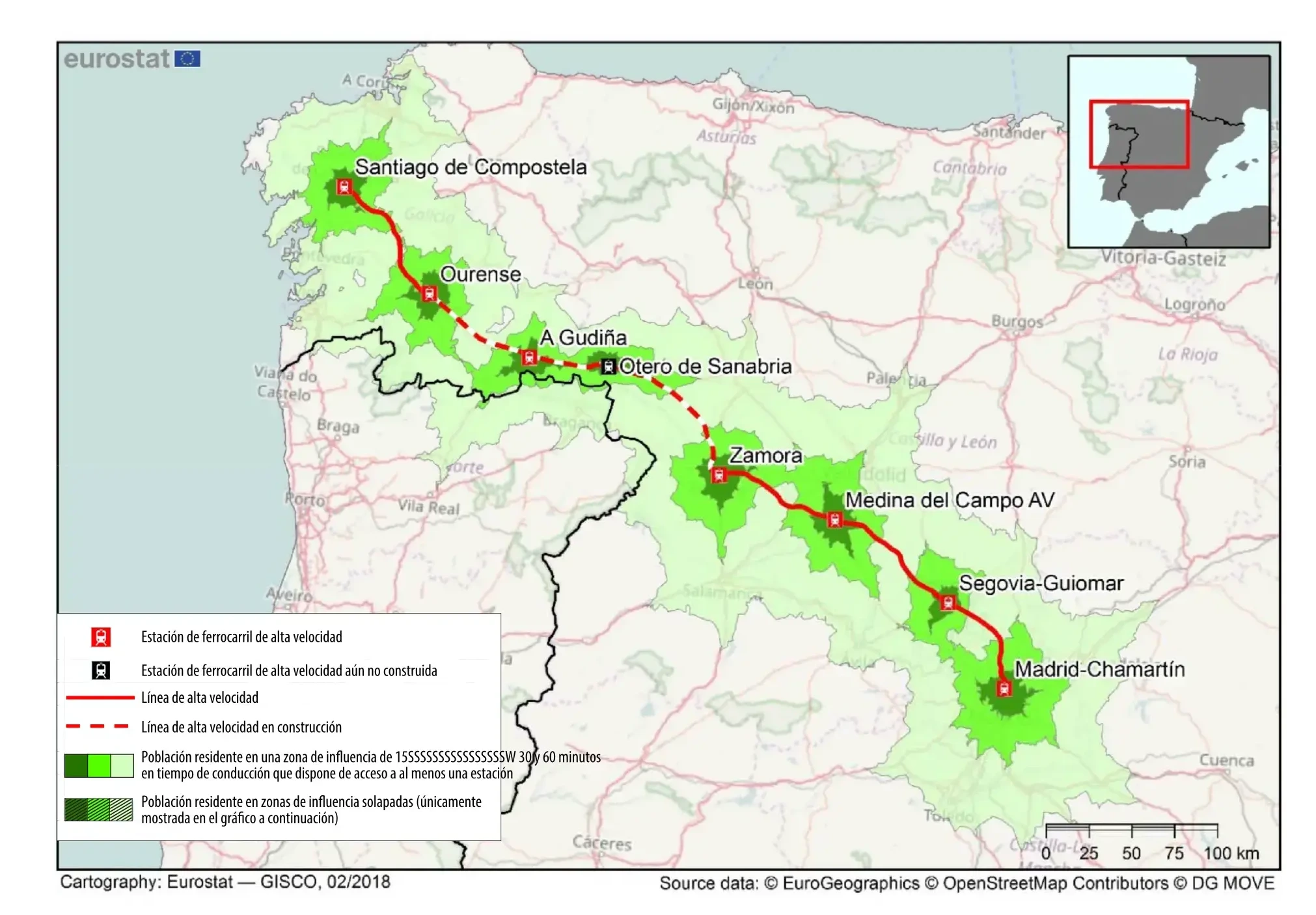

Influence on Land Use Planning

The railway has superior transport capacity to the road in urban spaces. A 4-lane highway in a single direction with an average occupancy of 2 people per vehicle and frequency of 1 car every 1.8 seconds can transport approximately 16,000 passengers/hour.

In contrast, a railway with a 3-minute frequency between trains and capacity of 500 people per train reaches 10,000 passengers/hour per track. With modern signaling, communication, and automation systems reducing the interval to 90 seconds and using high-capacity commuter units (double decker), values of 40,000 to 60,000 passengers/hour are reached.

0d2781313db4fef14c007c1ddb012176_MD5 link

Chapter VI: Perspectives and Opportunities of the Railway

In the horizon of this 21st century, the railway is especially suitable for:

Passenger Traffic

  • Commuter: Transport of large numbers of passengers in commuter trips or in large population urban areas.
  • Intercity transport: Transport of passengers at high speed between cities separated by 250 to 750 kilometers.

Freight Traffic

  • Transport of large masses of goods
  • Reduced energy consumption and little or no environmental pollution
  • Integral safety of the system

Review Questions

What were the three main technological innovations that allowed the emergence of the modern railway?

The wheel (rotation device), the rail (guiding structure), and the steam locomotive (driving machine).

What technological milestone did George Stephenson achieve in 1829 and what consequences did it have?

He built the locomotive The Rocket, whose operational success demonstrated the technical viability of mechanical propulsion.

What does “standard gauge” consist of and what is its measurement?

It is the track gauge of 1435 mm, originally adopted on the Liverpool-Manchester line (1830).

What is the fundamental difference between ADIF and Renfe Operadora after the 2005 separation?

ADIF manages the infrastructure and Renfe Operadora operates the trains.

What did the directives of the First Railway Package (2001) establish?

They regulated the allocation of capacity and infrastructure by an independent body to ensure free competition.

Bibliographic Sources
